Internal 55 partial profile threading inserts for general industry
Additional information
Weight
0.0017 kg
barcode
Additional Information

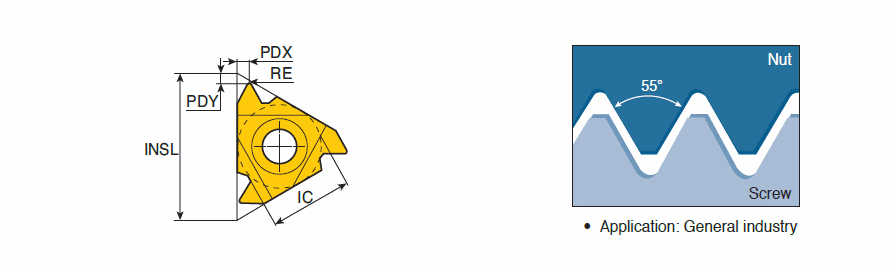

Inscribed Circle Diameter (IC): 3.97 mm
Threads per Inch Minimum (TPIN): 16 Threads/
Insert Length (INSL): 6 mm
Threads per Inch Maximum (TPIX): 48 Threads/
Corner Radius (RE): 0.05 mm
Thread Pitch Minimum (TPN): 0.5 mm
Grade: TT8010
Thread Pitch Maximum (TPX): 1.25 mm
Coating: TiN
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Application:, Internal Threading, Unit: M
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium
