Taegutec 08IR 18 NPT TT8010

Product Code: 5921845

$43.22$39.29 Ex. GST

Product Code: 5921845 SKU 5921845 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

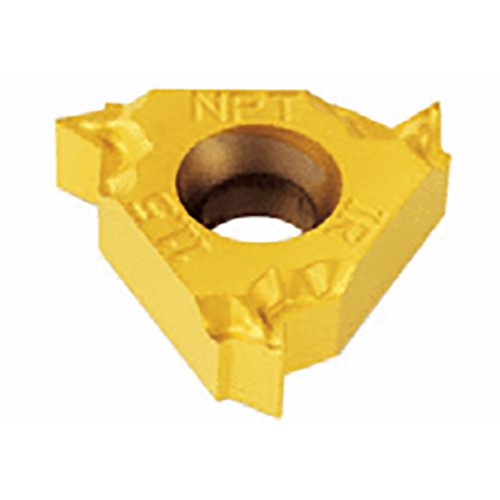

Taegutec 08IR 18 NPT TT8010

Taegutec 08IR 18 NPT TT8010 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Internal NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

Additional information

Weight	0.0020 kg
barcode

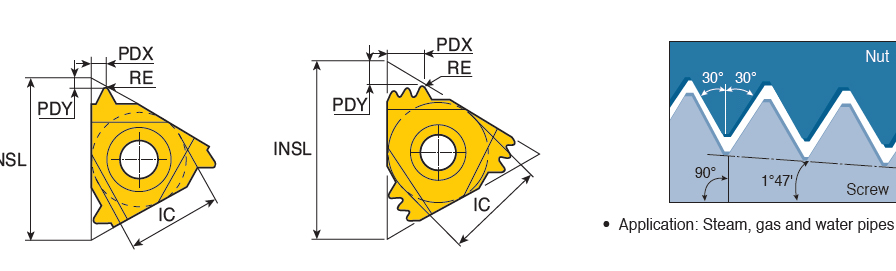

Additional Information	Inscribed Circle Diameter (IC): 4.76 mm Cutting Edge Material: Carbide Insert Length (INSL): 8 mm Application:, Internal Threading, Threads per Inch (TPI): 18 Threads/ Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.06 mm Measurement Type: Metric Grade: TT8010 Body Material: Carbide Coating: TiN Unit: M

Brand

Taegutec
