Taegutec 08IR 18 W TT8010

Product Code: 5922487

$43.22$39.29 Ex. GST

Product Code: 5922487 SKU 5922487 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

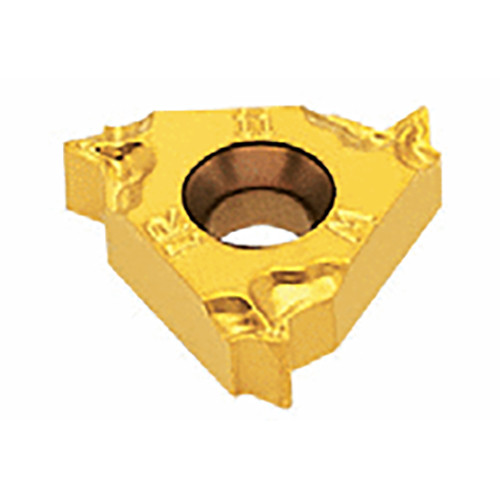

Internal Whitworth full profile (BSW, BSF, BSP) threading inserts

Additional information

Weight 0.0050 kg
barcode
Additional Information

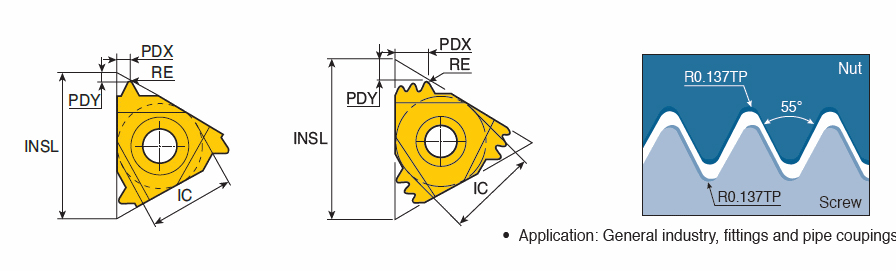

Inscribed Circle Diameter (IC): 4.76 mm
Cutting Edge Material: Carbide
Insert Length (INSL): 8 mm
Application:, Internal Threading, Threads per Inch (TPI): 18 Threads/
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.16 mm
Measurement Type: Metric
Grade: TT8010
Body Material: Carbide
Coating: TiN
Unit: M

Brand

Taegutec
