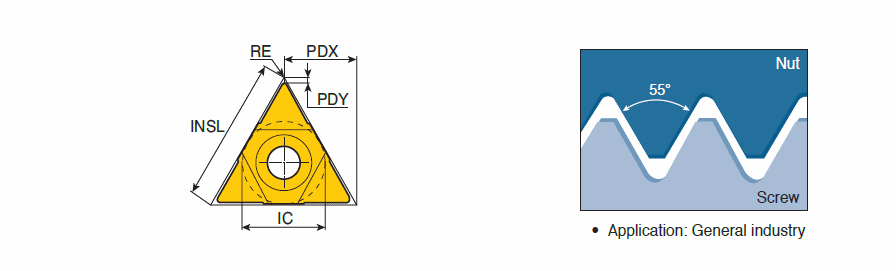

Inscribed Circle Diameter (IC): 4.76 mm
Threads per Inch Minimum (TPIN): 11 Threads/
Insert Length (INSL): 8 mm
Threads per Inch Maximum (TPIX): 14 Threads/
Corner Radius (RE): 0.1 mm
Thread Pitch Minimum (TPN): 1.75 mm
Grade: TT8010
Thread Pitch Maximum (TPX): 2 mm
Coating: TiN
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Application:, Internal Threading, Unit: M
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium
