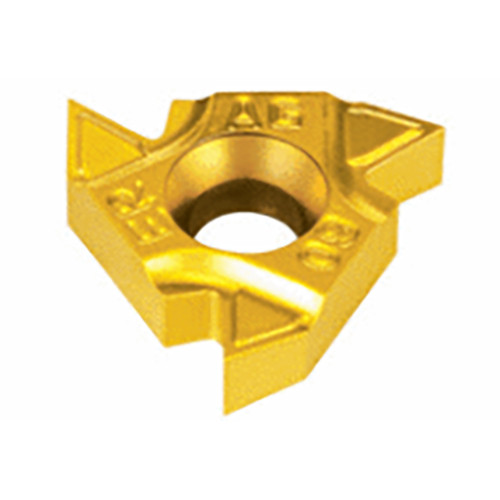

External 60 partial profile threading inserts for general industry
Additional information
Weight
0.0050 kg
barcode
Additional Information

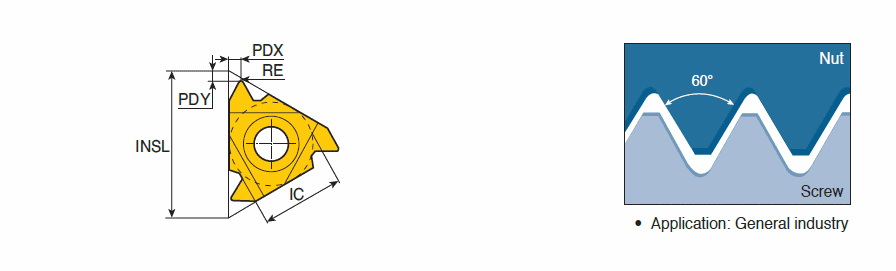

Inscribed Circle Diameter (IC): 6.35 mm
Threads per Inch Minimum (TPIN): 16 Threads/
Insert Length (INSL): 11 mm
Threads per Inch Maximum (TPIX): 48 Threads/
Corner Radius (RE): 0.05 mm
Thread Pitch Minimum (TPN): 0.5 mm
Grade: TT9030
Thread Pitch Maximum (TPX): 1.5 mm
Coating: TiAlN
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Application:, External Threading, Unit: M
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium
