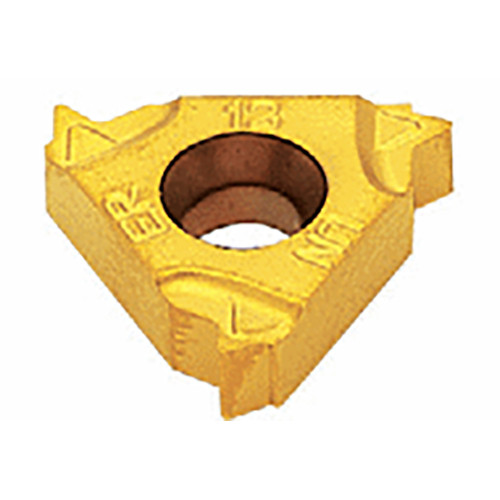

Taegutec 11ER 32 UN TT9030

Product Code: 5922665

$35.94$32.67 Ex. GST

Product Code: 5922665 SKU 5922665 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

External american UN full profile (UN, UNC, UNF, UNEF) threading inserts

Additional information

Weight 0.0045 kg
barcode
Additional Information

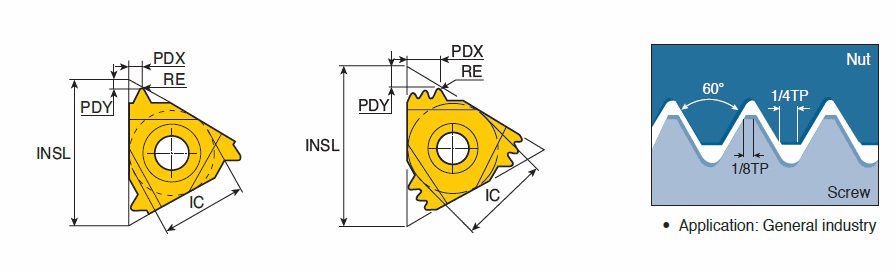

Inscribed Circle Diameter (IC): 6.35 mm
Cutting Edge Material: Carbide
Insert Length (INSL): 11 mm
Application:, External Threading, Threads per Inch (TPI): 32 Threads/
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.09 mm
Measurement Type: Metric
Grade: TT9030
Body Material: Carbide
Coating: TiAlN
Unit: M

Brand

Taegutec
