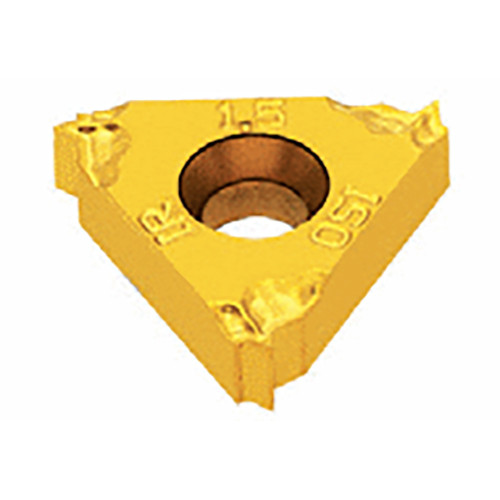

Taegutec 11IL 1.50 ISO TT9030

Product Code: 5922261

$35.94$32.67 Ex. GST

Product Code: 5922261 SKU 5922261 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Internal ISO metric full profile threading inserts for general industry

Additional information

Weight 0.0100 kg
barcode
Additional Information

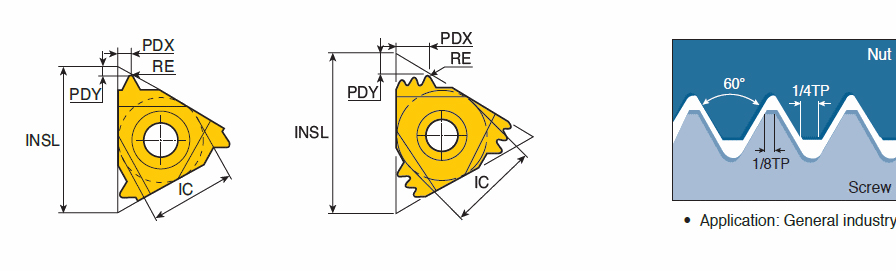

Inscribed Circle Diameter (IC): 6.35 mm
Cutting Edge Material: Carbide
Insert Length (INSL): 11 mm
Application:, Internal Threading, Thread Pitch (TP): 1.5 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.12 mm
Measurement Type: Metric
Grade: TT9030
Body Material: Carbide
Coating: TiAlN
Unit: M
