Taegutec 12D-TF45-16160-40R-10

Product Code: 6307698

$2,837.65$2,579.68 Ex. GST

Product Code: 6307698 SKU 6307698 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

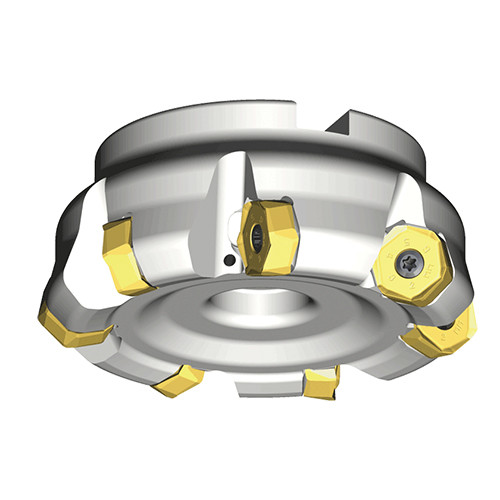

45° Face mills with reinforced 12 cutting edges inserts of high positive angle for general milling in max. depth of cut ap 5.0 mm

Weight	5.8400 kg
Dimensions
barcode

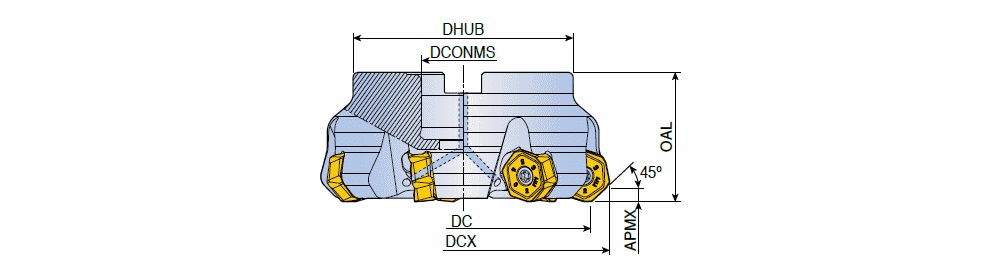

Additional Information	Cutting Diameter (DC/DCX): 174.5 mm Hub Diameter (DHUB): 110 mm Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): HXKU 1007 ANR-M Cutting Diameter Maximum (DCX): 174.5 mm Body Material: Steel Cutting Item Count (CICT): 16 Application:, Facing, Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Unit: M Overall Length (OAL): 5 mm
