Taegutec 14D-F45XNH 11125-40R-06

Product Code: 6315781

$2,015.54$1,832.31 Ex. GST

Product Code: 6315781 SKU 6315781 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

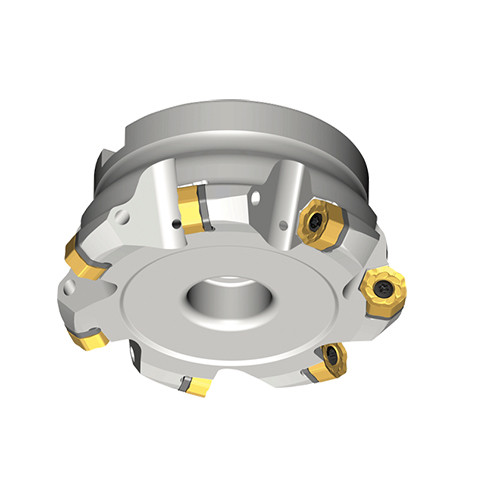

45° Face mills with carbide shim and double-sided 14 cutting edges inserts of XN 06 for roughing and finishing of difficult-to-cut materials

Weight	4.3100 kg
Dimensions
barcode

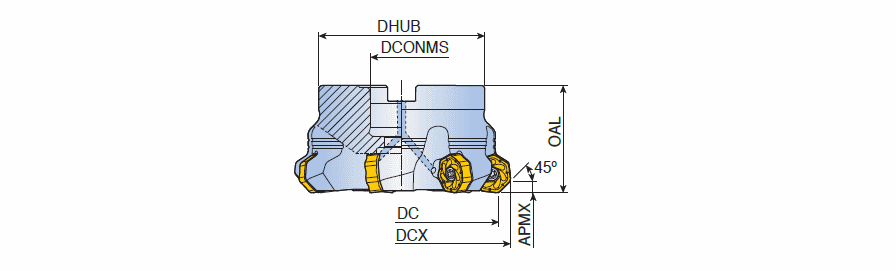

Additional Information	Cutting Diameter (DC/DCX): 134.2 mm Hub Diameter (DHUB): 85 mm Cutting Diameter (DC): 125 mm Master Insert Identification (MIID): XNHU 0605 ANN-MM Cutting Diameter Maximum (DCX): 134.2 mm Body Material: Steel Cutting Item Count (CICT): 11 Application:, Facing, Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Unit: M Overall Length (OAL): 3.5 mm
