Taegutec 14D-F45XNH 7100-32R-09

Product Code: 6315472

$1,533.62$1,394.20 Ex. GST

Product Code: 6315472 SKU 6315472 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

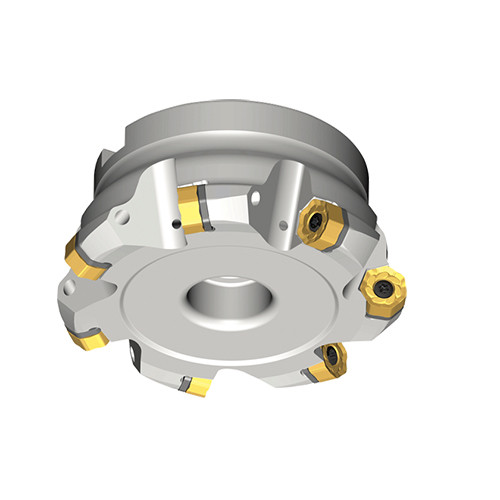

Taegutec 14D-F45XNH 7100-32R-09

Taegutec 14D-F45XNH 7100-32R-09 - Image 2

Taegutec 14D-F45XNH 7100-32R-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

45° Face mills with carbide shim and double-sided 14 cutting edges inserts of XN 09 for roughing of difficult-to-cut material & heavy milling

Additional information

Weight	2.6250 kg
Dimensions
barcode

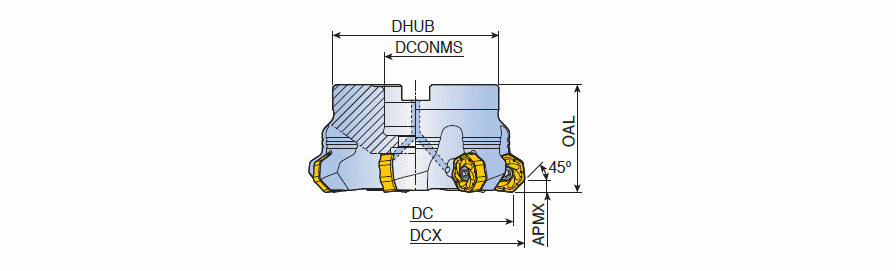

Additional Information	Cutting Diameter (DC/DCX): 112.1 mm Hub Diameter (DHUB): 85 mm Cutting Diameter (DC): 100 mm Master Insert Identification (MIID): XNHU 0906 ANTN-MM Cutting Diameter Maximum (DCX): 112.1 mm Body Material: Steel Cutting Item Count (CICT): 7 Application:, Facing, Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Unit: M Overall Length (OAL): 5 mm

Brand

Taegutec
