Taegutec 14D-F45XNH 780-27R-06

Product Code: 6316598

$1,296.10$1,178.27 Ex. GST

Product Code: 6316598 SKU 6316598 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

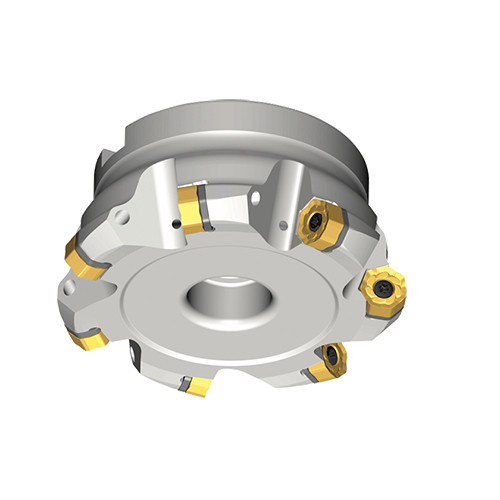

45° Face mills with carbide shim and double-sided 14 cutting edges inserts of XN 06 for roughing and finishing of difficult-to-cut materials

Weight	1.9100 kg
Dimensions
barcode

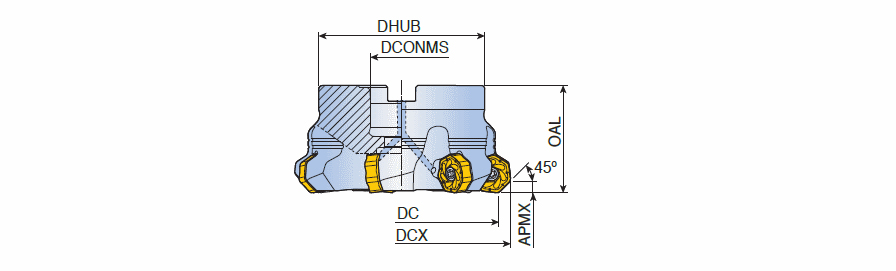

Additional Information	Cutting Diameter (DC/DCX): 89.2 mm Hub Diameter (DHUB): 70 mm Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): XNHU 0605 ANN-MM Cutting Diameter Maximum (DCX): 89.2 mm Body Material: Steel Cutting Item Count (CICT): 7 Application:, Facing, Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 27 mm Unit: M Overall Length (OAL): 3.5 mm
