Taegutec 14D-F45XNH 9125-40R-09

Product Code: 6315783

$1,883.68$1,712.44 Ex. GST

Product Code: 6315783 SKU 6315783 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

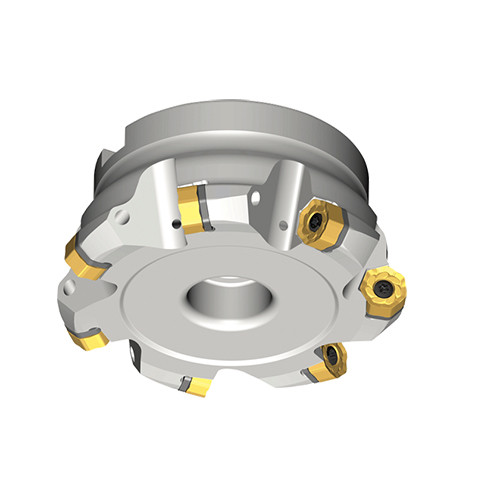

45° Face mills with carbide shim and double-sided 14 cutting edges inserts of XN 09 for roughing of difficult-to-cut material & heavy milling

Weight	4.3000 kg
Dimensions
barcode

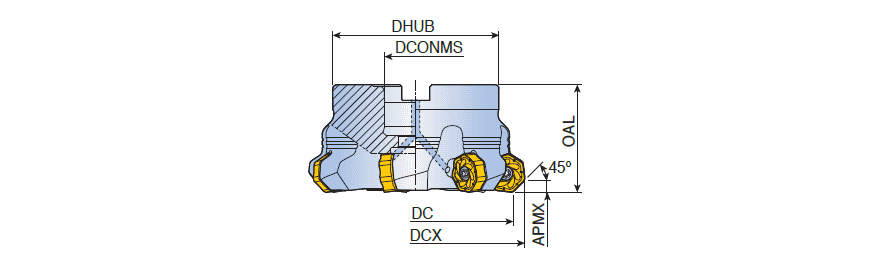

Additional Information	Cutting Diameter (DC/DCX): 137 mm Hub Diameter (DHUB): 85 mm Cutting Diameter (DC): 125 mm Master Insert Identification (MIID): XNHU 0906 ANTN-MM Cutting Diameter Maximum (DCX): 137 mm Body Material: Steel Cutting Item Count (CICT): 9 Application:, Facing, Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Unit: M Overall Length (OAL): 5 mm
