Taegutec 14D-F45XNW 1080-27R-09

Product Code: 6162685

$1,977.38$1,797.62 Ex. GST

Product Code: 6162685 SKU 6162685 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

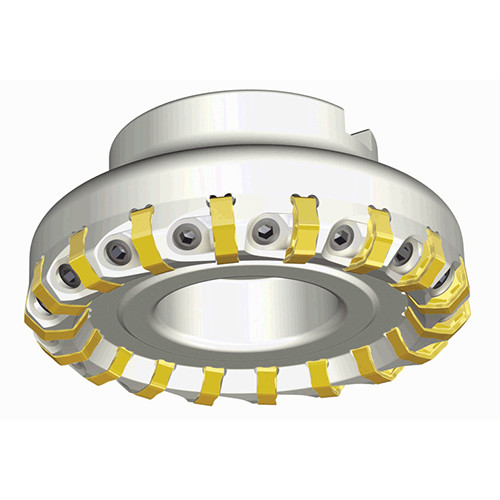

45° Face mills with wedge clamping of double-sided economical 14 cutting edges inserts XN 09 for high productive cast iron milling

Weight	2.0300 kg
Dimensions
barcode

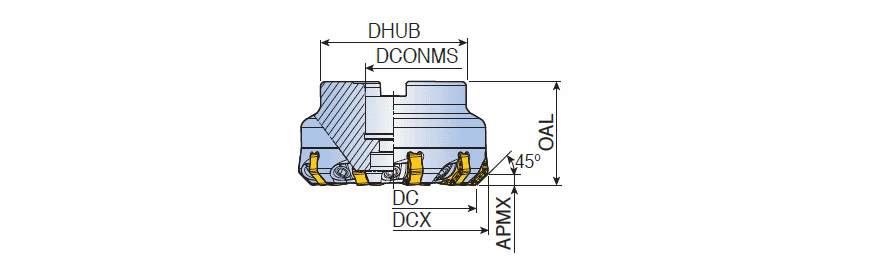

Additional Information	Cutting Diameter (DC): 91.9 mm Master Insert Identification (MIID): XNHU 0906 ANTN-MM Cutting Item Count (CICT): 10 Body Material: Steel Depth of Cut Maximum (APMX): 5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 50 mm Unit: M
