Taegutec 14D-F45XNW 18160-40R-09

Product Code: 6108716

$3,304.71$3,004.28 Ex. GST

Product Code: 6108716 SKU 6108716 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

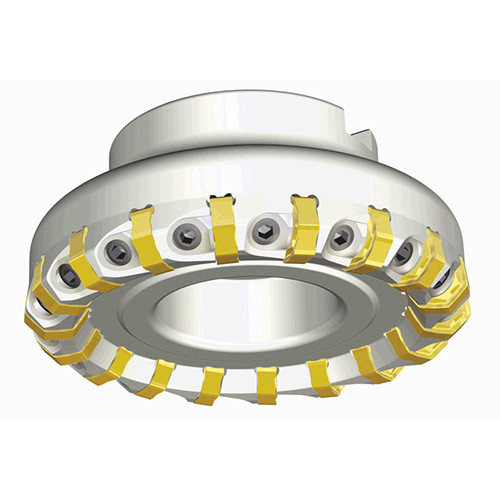

45° Face mills with wedge clamping of double-sided economical 14 cutting edges inserts XN 09 for high productive cast iron milling

Weight	5.7400 kg
Dimensions
barcode

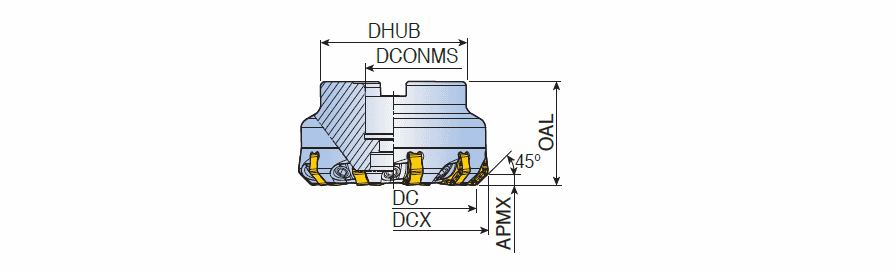

Additional Information	Cutting Diameter (DC): 172 mm Master Insert Identification (MIID): XNHU 0906 ANTN-MM Cutting Item Count (CICT): 18 Body Material: Steel Depth of Cut Maximum (APMX): 5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
