Taegutec 14D-F45XNW 28200-60R-09

Product Code: 6308478

$4,984.99$4,531.81 Ex. GST

Product Code: 6308478 SKU 6308478 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Taegutec 14D-F45XNW 28200-60R-09

Taegutec 14D-F45XNW 28200-60R-09 - Image 2

Taegutec 14D-F45XNW 28200-60R-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

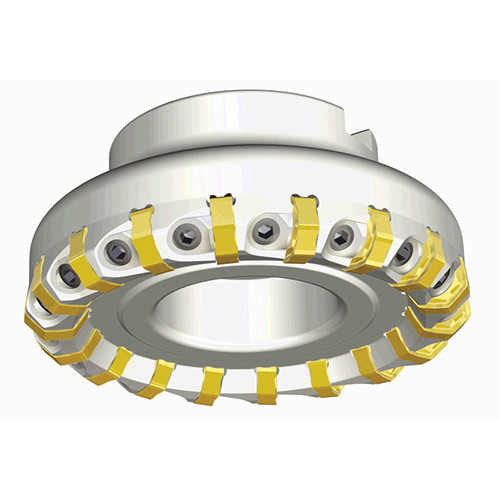

45° Face mills with wedge clamping of double-sided economical 14 cutting edges inserts XN 09 for high productive cast iron milling

Additional information

Weight	8.4600 kg
Dimensions
barcode

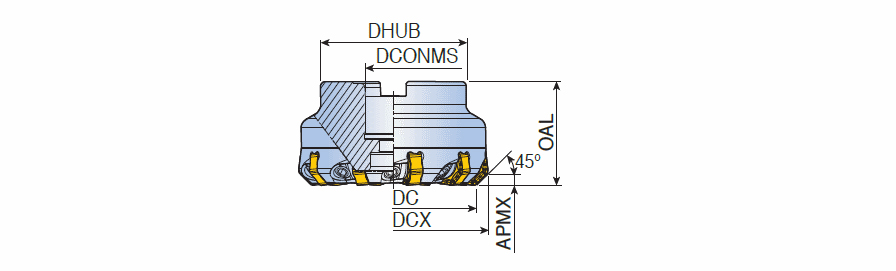

Additional Information	Cutting Diameter (DC): 212 mm Master Insert Identification (MIID): XNHU 0906 ANTN-MM Cutting Item Count (CICT): 28 Body Material: Steel Depth of Cut Maximum (APMX): 5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 60 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
