Taegutec 16ERM 1.75 ISO TT9030

Product Code: 5920025

$30.23$27.48 Ex. GST

Product Code: 5920025 SKU 5920025 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

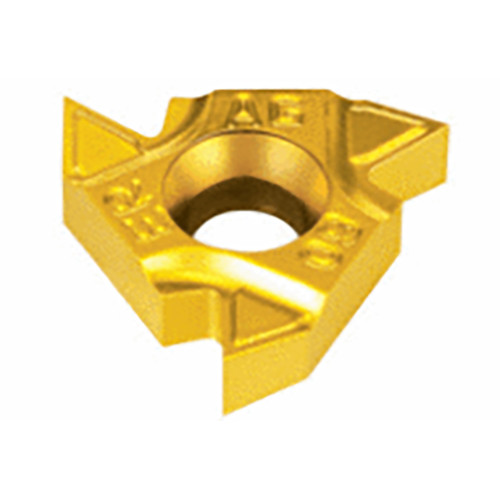

Taegutec 16ERM 1.75 ISO TT9030

Taegutec 16ERM 1.75 ISO TT9030 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

External ISO metric full profile threading inserts

Additional information

Weight	0.0046 kg
barcode

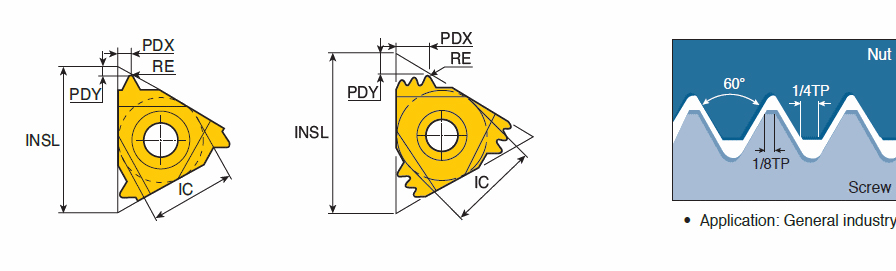

Additional Information	Inscribed Circle Diameter (IC): 9.52 mm Cutting Edge Material: Carbide Insert Length (INSL): 16 mm Application:, External Threading, Thread Pitch (TP): 1.75 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.21 mm Measurement Type: Metric Grade: TT9030 Body Material: Carbide Coating: TiAlN Unit: M

Brand

Taegutec
