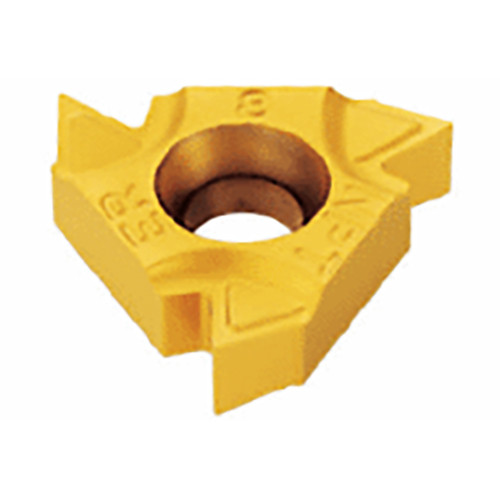

Taegutec 16ERM 14 NPT TT7010

Product Code: 5921509

$28.71$26.10 Ex. GST

Product Code: 5921509 SKU 5921509 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

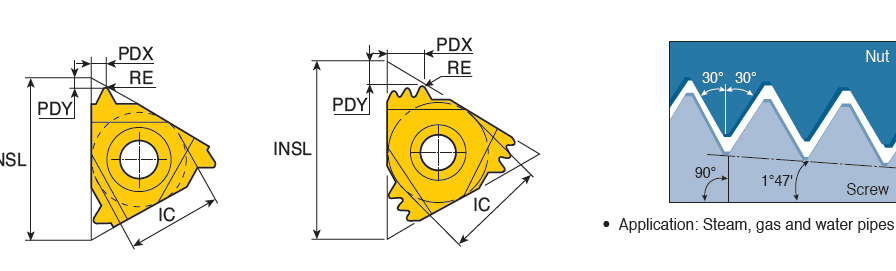

External NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

Additional information

Weight 0.0040 kg
barcode
Additional Information

Inscribed Circle Diameter (IC): 9.52 mm
Cutting Edge Material: Carbide
Insert Length (INSL): 16 mm
Application:, External Threading, Threads per Inch (TPI): 14 Threads/
Applicable Material:, Steel, Cast Iron, Corner Radius (RE): 0.05 mm
Measurement Type: Metric
Grade: TT7010
Body Material: Carbide
Coating: TiN
Unit: M

Brand

Taegutec
