Taegutec 22ER 11.50 NPT 2M TT9030

Product Code: 5922621

$85.12$77.38 Ex. GST

Product Code: 5922621 SKU 5922621 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

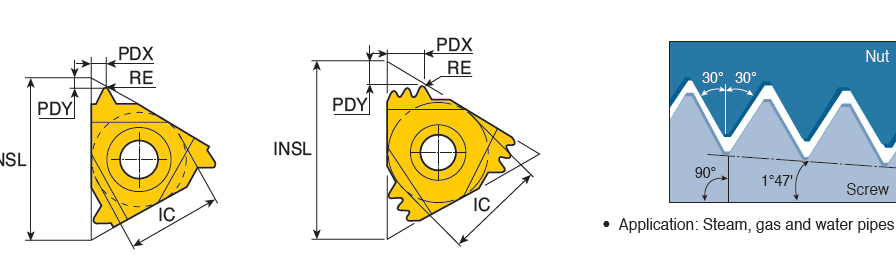

External NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

Weight	0.0010 kg
barcode
Additional Information	Inscribed Circle Diameter (IC): 12.7 mm Cutting Edge Material: Carbide Insert Length (INSL): 22 mm Application:, External Threading, Threads per Inch (TPI): 11.5 Threads/ Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Corner Radius (RE): 0.09 mm Measurement Type: Metric Grade: TT9030 Body Material: Carbide Coating: TiAlN Unit: M
