Taegutec 22IRM N 60 TT9030

Product Code: 5922124

$51.26$46.60 Ex. GST

Product Code: 5922124 SKU 5922124 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

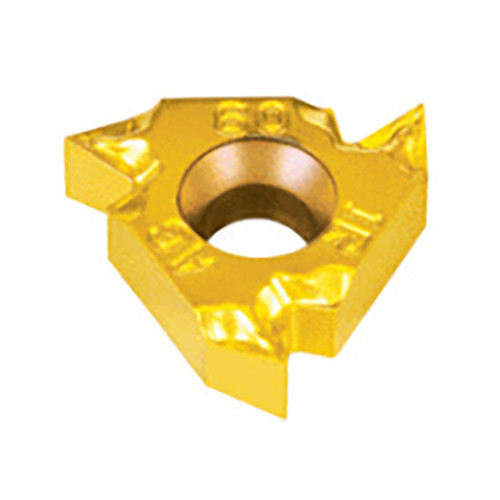

Taegutec 22IRM N 60 TT9030

Taegutec 22IRM N 60 TT9030 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Internal 60° partial profile threading inserts for general industry

Additional information

Weight	0.0094 kg
barcode

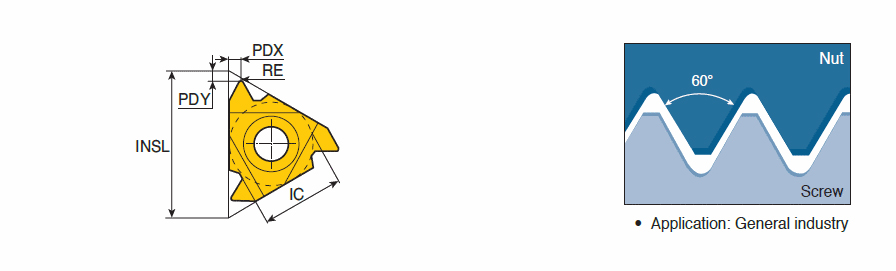

Additional Information	Inscribed Circle Diameter (IC): 12.7 mm Threads per Inch Minimum (TPIN): 5 Threads/ Insert Length (INSL): 22 mm Threads per Inch Maximum (TPIX): 7 Threads/ Corner Radius (RE): 0.19 mm Thread Pitch Minimum (TPN): 3.5 mm Grade: TT9030 Thread Pitch Maximum (TPX): 5 mm Coating: TiAlN Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Application:, Internal Threading, Unit: M Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium

Brand

Taegutec
