External 60 partial profile threading inserts for general industry
Additional information
Weight
0.0046 kg
barcode
Additional Information

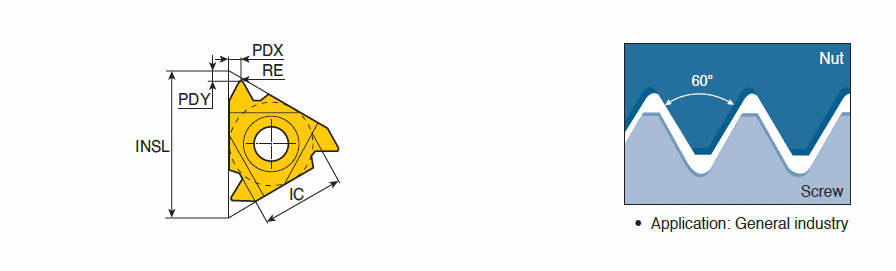

Inscribed Circle Diameter (IC): 15.88 mm
Threads per Inch Minimum (TPIN): 4 Threads/
Insert Length (INSL): 27 mm
Threads per Inch Maximum (TPIX): 4.5 Threads/
Corner Radius (RE): 0.63 mm
Thread Pitch Minimum (TPN): 5.5 mm
Grade: TT7010
Thread Pitch Maximum (TPX): 6 mm
Coating: TiN
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Application:, External Threading, Unit: M
Applicable Material:, Steel, Cast Iron
