Taegutec 27UERL 8 TR TT7010

Product Code: 5922180

$93.24$84.76 Ex. GST

Product Code: 5922180 SKU 5922180 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

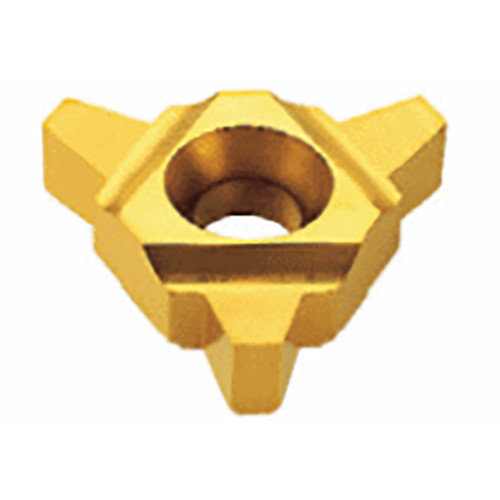

External Trapeze shaped DIN 103 U-type threading inserts for feed screws

Weight	0.0045 kg
barcode

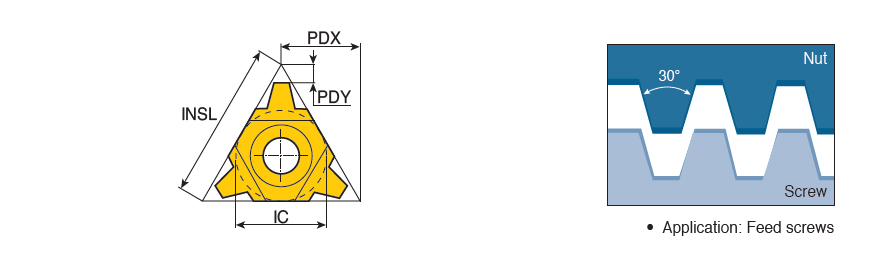

Additional Information	Inscribed Circle Diameter (IC): 15.88 mm Application:, External Threading, Insert Length (INSL): 27 mm Applicable Material:, Steel, Cast Iron, Thread Pitch (TP): 8 mm Measurement Type: Metric Grade: TT7010 Body Material: Carbide Coating: TiN Unit: M Cutting Edge Material: Carbide
