Taegutec 2F 16-11-M08

Product Code: 3113362

$392.17$356.52 Ex. GST

Product Code: 3113362 SKU 3113362 Categories , ,

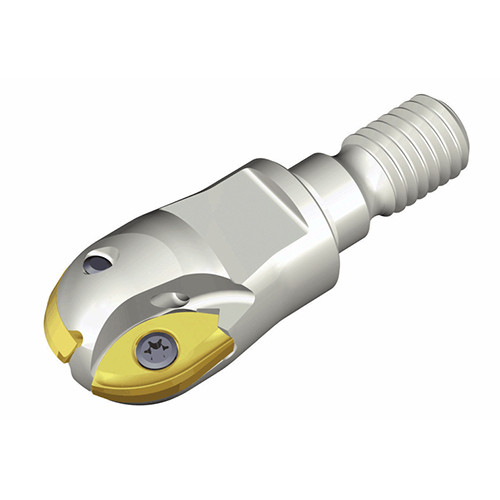

Taegutec 2F 16-11-M08

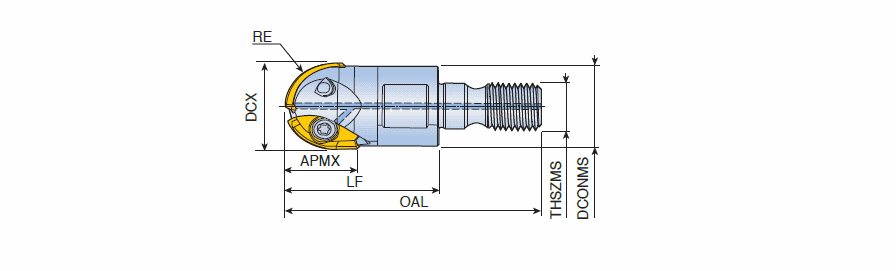

Taegutec 2F 16-11-M08 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Ball nose end mills for rough or semi-finish profiling with T-FLEXTEC modular adaptation with one insert of both internal and external pockets in diameters of 16/20/25/30/32 mm

Additional information

Weight 0.0850 kg
Dimensions
barcode
Additional Information

Cutting Diameter (DC/DCX): 16 mm
Master Insert Identification (MIID): 2FB160-M
Cutting Diameter (DC): 16 mm
Head Length (LH): 25 mm
Cutting Item Count (CICT): 2
Connection Thread Nominal Size Machine Side (THSZMS): M08
Depth of Cut Maximum (APMX): 11.8 mm
Measurement Type: Metric
Overall Length (OAL): 42.5 mm
Body Material: Steel
Application:, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
