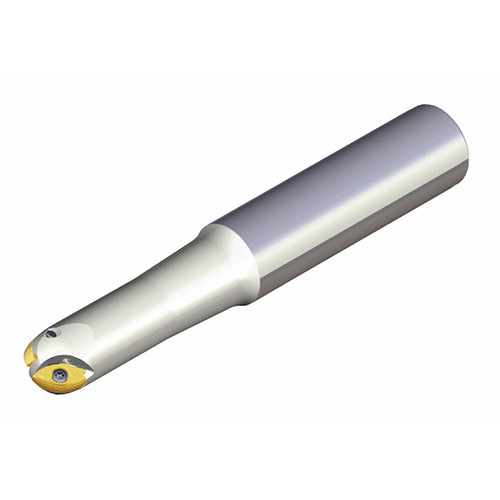

Taegutec 2F 16-20-W20-L120-P

Product Code: 6125070

$518.62$471.47 Ex. GST

Product Code: 6125070 SKU 6125070 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm

Weight	0.2850 kg
Dimensions
barcode

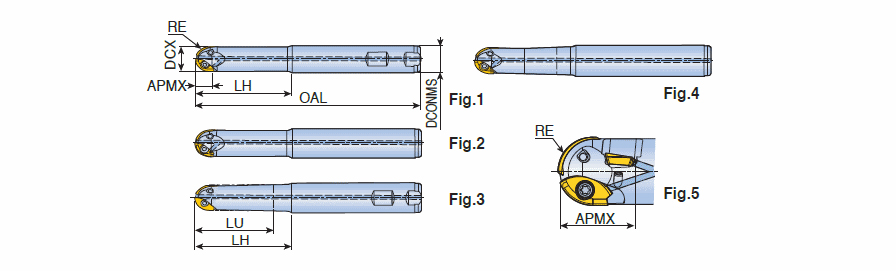

Additional Information	Cutting Diameter (DC/DCX): 16 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 16 mm Master Insert Identification (MIID): 2FB160-M Cutting Item Count (CICT): 2 Head Length (LH): 60 mm Depth of Cut Maximum (APMX): 20.5 mm Corner Radius (RE): 8 mm Overall Length (OAL): 120 mm Measurement Type: Metric Shank Type: Weldon Body Material: Steel Application:, Helical Interpolation, Profiling, Rampdown, Unit: M
