Taegutec 2F 25-17-32-L200

Product Code: 3113055

$654.71$595.19 Ex. GST

Product Code: 3113055 SKU 3113055 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

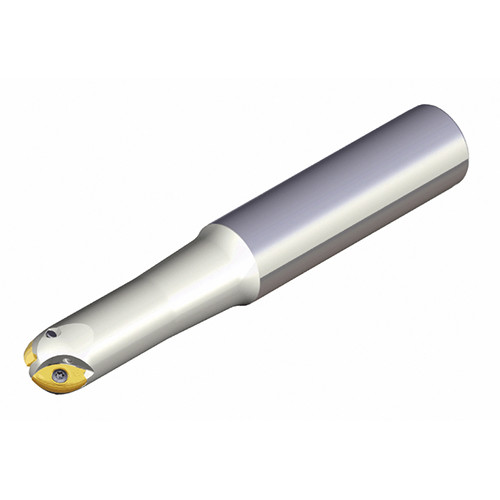

Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm

Weight	1.1100 kg
Dimensions
barcode

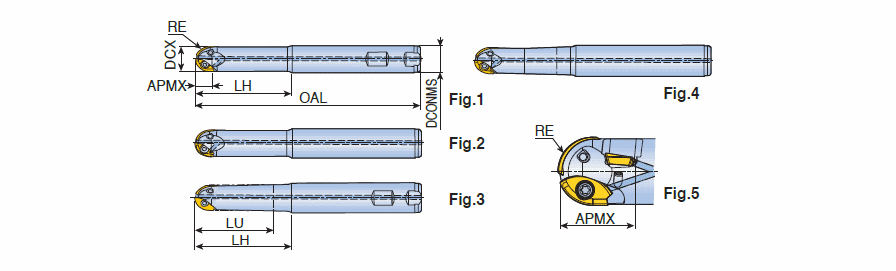

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): 2FB250-M Cutting Item Count (CICT): 2 Head Length (LH): 85 mm Depth of Cut Maximum (APMX): 17.7 mm Corner Radius (RE): 12.5 mm Overall Length (OAL): 200 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Application:, Helical Interpolation, Profiling, Rampdown, Unit: M
