Taegutec 2F 30-20-W32-L180

Product Code: 6101415

$782.44$711.31 Ex. GST

Product Code: 6101415 SKU 6101415 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

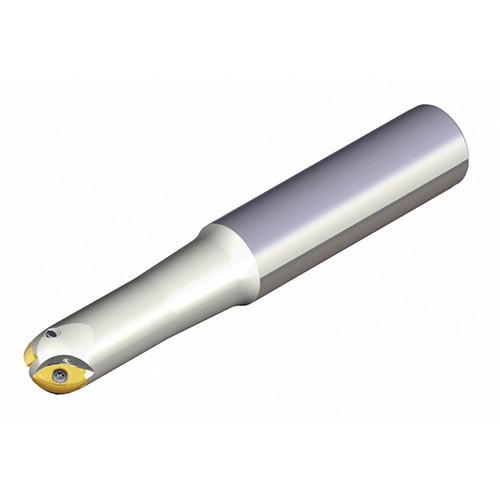

Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm

Weight	1.0100 kg
Dimensions
barcode

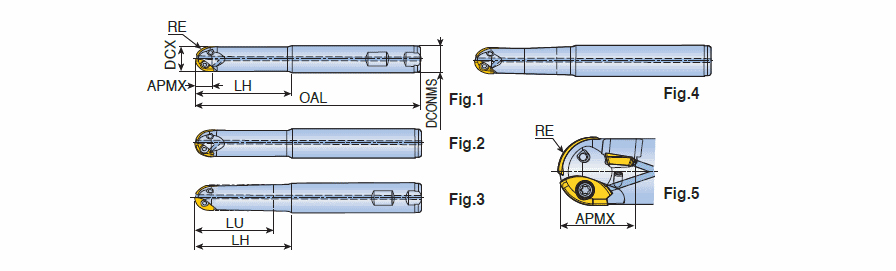

Additional Information	Cutting Diameter (DC/DCX): 30 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 30 mm Master Insert Identification (MIID): 2FB300-M Cutting Item Count (CICT): 2 Head Length (LH): 86.13 mm Depth of Cut Maximum (APMX): 20 mm Corner Radius (RE): 15 mm Overall Length (OAL): 180 mm Measurement Type: Metric Shank Type: Weldon Body Material: Steel Application:, Helical Interpolation, Profiling, Rampdown, Unit: M
