Taegutec 2F 32-21-32-L180

Product Code: 3113413

$778.69$707.90 Ex. GST

Product Code: 3113413 SKU 3113413 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

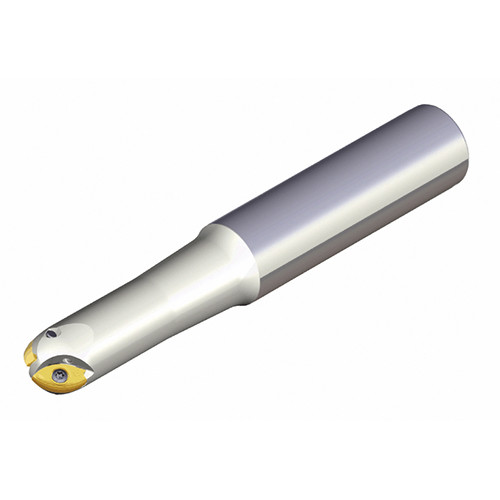

Taegutec 2F 32-21-32-L180

Taegutec 2F 32-21-32-L180 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm

Additional information

Weight	1.0300 kg
Dimensions
barcode

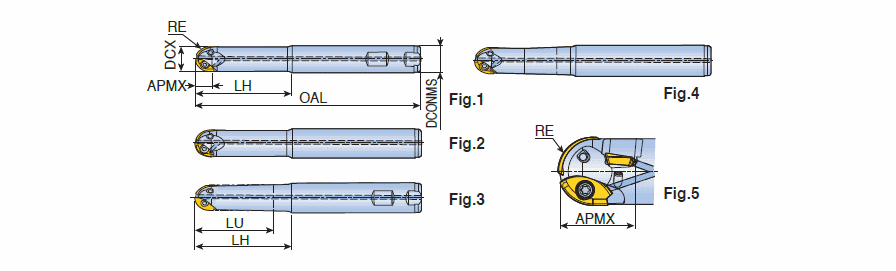

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 2FB320-M Cutting Item Count (CICT): 2 Head Length (LH): 100 mm Depth of Cut Maximum (APMX): 21.4 mm Corner Radius (RE): 16 mm Overall Length (OAL): 180 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Application:, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
