Taegutec 2FB160-ML TT9080

Product Code: 6159248

$44.06$40.05 Ex. GST

Product Code: 6159248 SKU 6159248 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

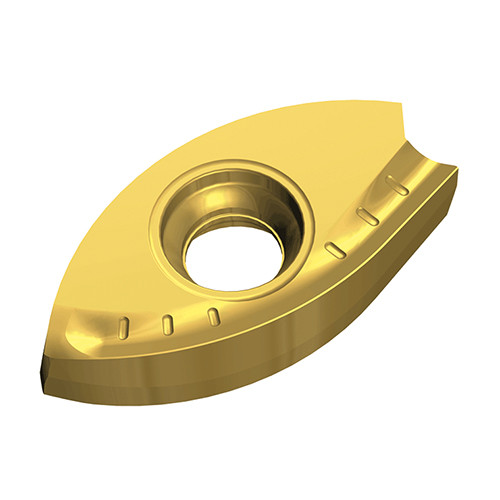

Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing for high temperature alloys and stainless steels

Weight	0.0033 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.28 mm/tooth Cutting Edge Length (L): 12.4 mm Cutting Edge Material: Carbide Corner Radius (RE): 8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Measurement Type: Metric Insert Width (W1): 6.8 mm Body Material: Carbide Insert Thickness (S): 3.7 mm Unit: M Coating: TiAlN+TiN
