Taegutec 2FB200-ML TT9080

Product Code: 6145448

$49.37$44.88 Ex. GST

Product Code: 6145448 SKU 6145448 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec 2FB200-ML TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

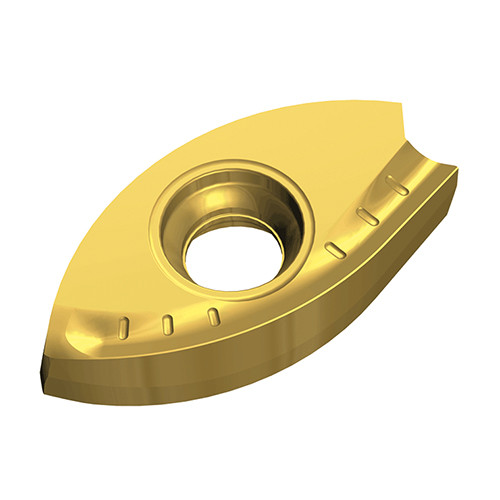

Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing for high temperature alloys and stainless steels

Additional information

Weight	0.0049 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.32 mm/tooth Cutting Edge Length (L): 14.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 10 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 8 mm Measurement Type: Metric Insert Width (W1): 8.2 mm Body Material: Carbide Insert Thickness (S): 4.8 mm Unit: M Coating: TiAlN+TiN

Brand

Taegutec
