Taegutec 2FB250-M TT2510

Product Code: 6126877

$64.34$58.49 Ex. GST

Product Code: 6126877 SKU 6126877 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec 2FB250-M TT2510

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

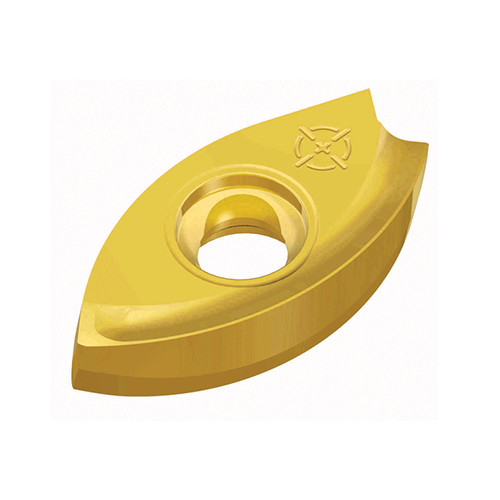

Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing in general applications

Additional information

Weight	0.0101 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 18.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 12.5 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 10 mm Measurement Type: Metric Insert Width (W1): 10.2 mm Body Material: Carbide Insert Thickness (S): 5.9 mm Unit: M Coating: AlTiN

Brand

Taegutec
