Taegutec 2FB250-M TT7800

Product Code: 5616286

$58.49$53.17 Ex. GST

Product Code: 5616286 SKU 5616286 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

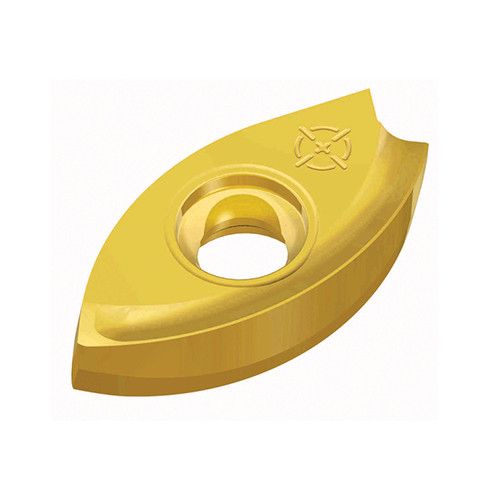

Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing in general applications

Weight	0.0098 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT7800 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 18.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 12.5 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 10 mm Measurement Type: Metric Insert Width (W1): 10.2 mm Body Material: Carbide Insert Thickness (S): 5.9 mm Unit: M Coating: TiCN+Al2O3+TiN
