Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec 2FB320-M TT7800
$73.17$66.52 Ex. GST

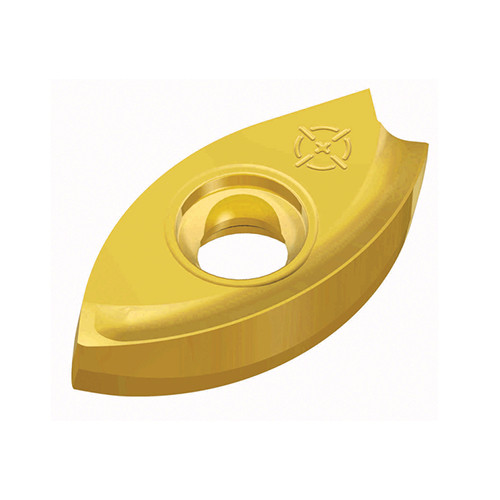

Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing in general applications
Applicable Material:, Steel, Grade: TT7800 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 23.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 16 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 13 mm Measurement Type: Metric Insert Width (W1): 12.8 mm Body Material: Carbide Insert Thickness (S): 7.5 mm Unit: M Coating: TiCN+Al2O3+TiN
