Taegutec 2P-TE90-212-M06-05

Product Code: 6142866

$418.32$380.29 Ex. GST

Product Code: 6142866 SKU 6142866 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

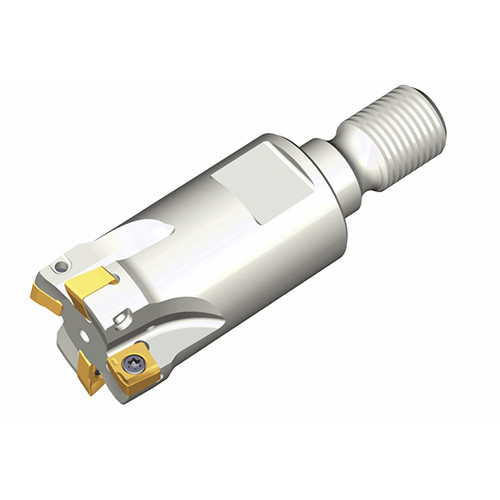

90° Modular end mills with T-FLEXTEC adaptation & high positive helical cutting edges of 2PKT inserts

Weight	0.0700 kg
Dimensions
barcode

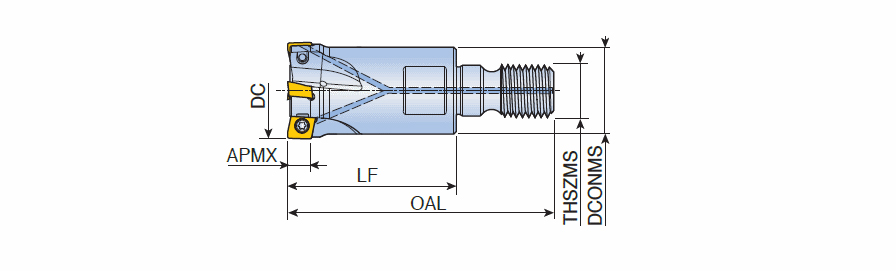

Additional Information	Cutting Diameter (DC/DCX): 12 mm Master Insert Identification (MIID): 2PKT 050304R-M Cutting Diameter (DC): 12 mm Head Length (LH): 23 mm Cutting Item Count (CICT): 2 Connection Thread Nominal Size Machine Side (THSZMS): M06 Depth of Cut Maximum (APMX): 4.7 mm Measurement Type: Metric Overall Length (OAL): 37.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
