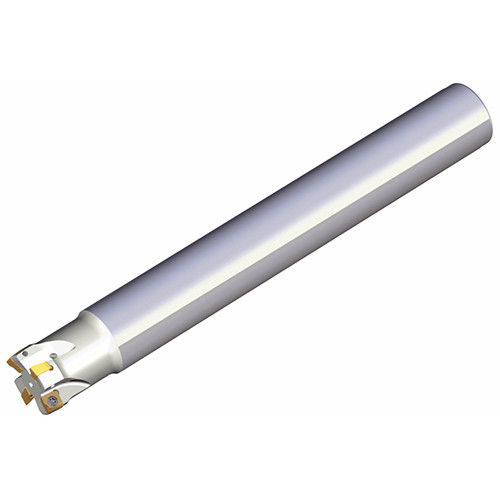

90° End mills with 2PKT inserts of high positive helical cutting edges
Additional information
Weight
0.2850 kg
Dimensions
barcode
Additional Information

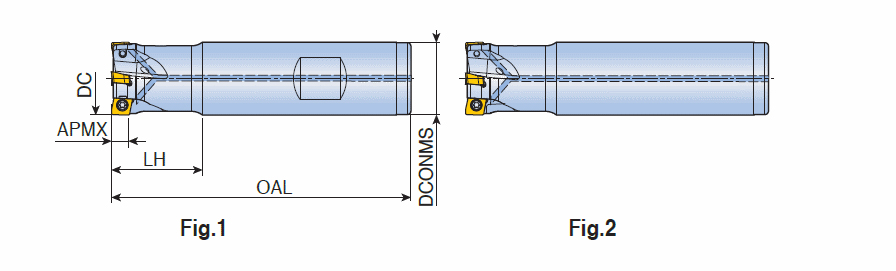

Cutting Diameter (DC/DCX): 20 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 20 mm
Master Insert Identification (MIID): 2PKT 050304R-M
Cutting Item Count (CICT): 3
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 4.7 mm
Measurement Type: Metric
Overall Length (OAL): 105 mm
Body Material: Steel
Shank Type: Weldon
Unit: M

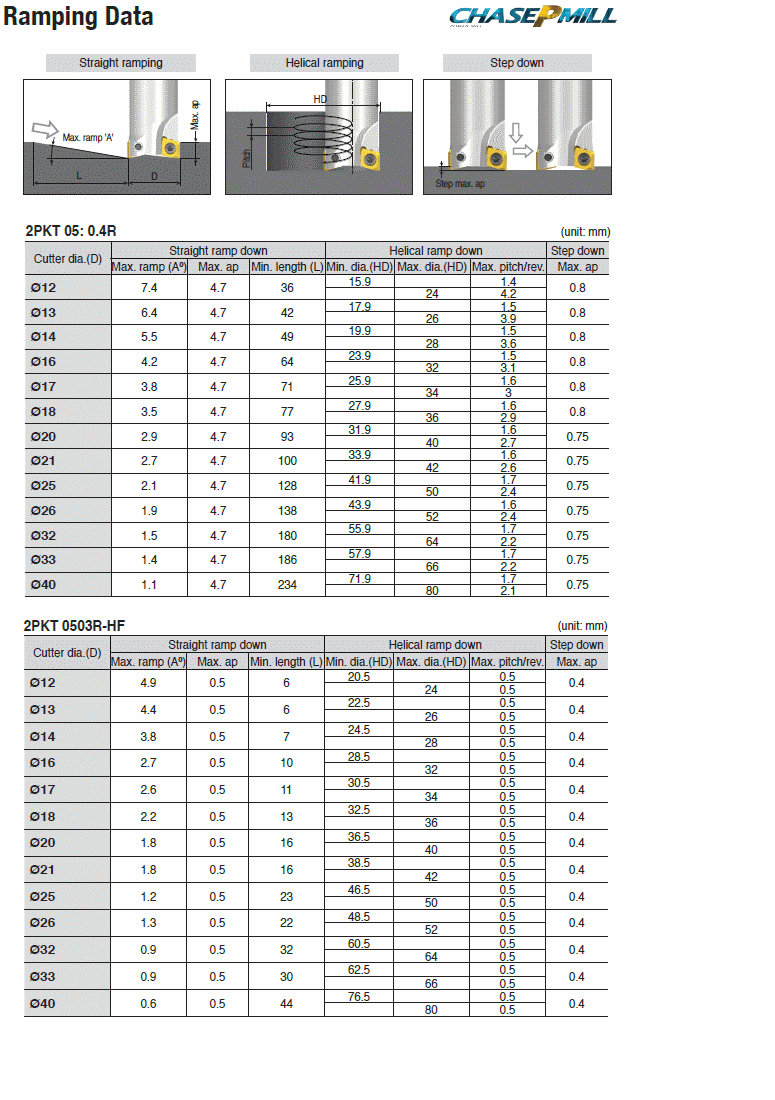

Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining
