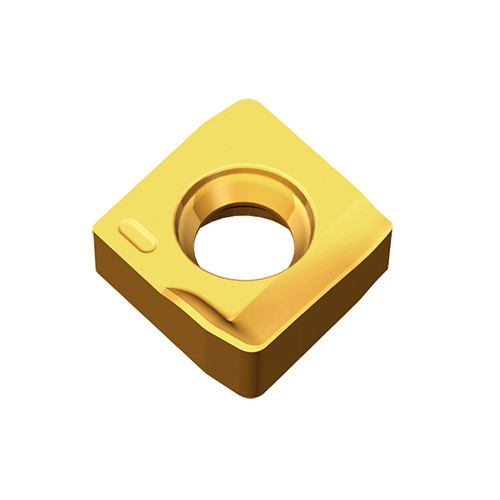

Taegutec 2PKT 050308R-M TT2510

Description

Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering

Weight	0.0019 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Cutting Edge Length (L): 4.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.06 mm/tooth Depth of Cut Maximum (APMX): 4.2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 5.17 mm Body Material: Carbide Insert Thickness (S): 3.4 mm Unit: M Coating: AlTiN
