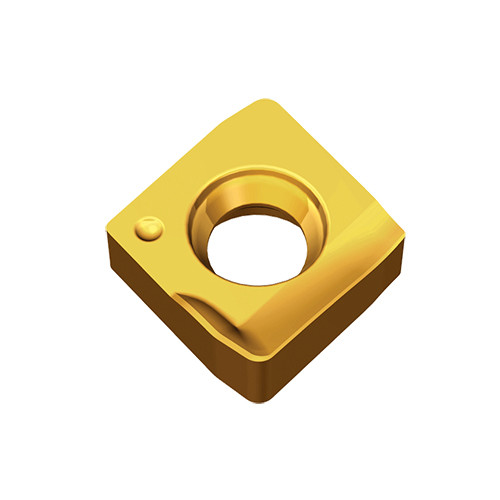

Taegutec 2PKT 050308R-ML TT9080

Description

Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering

Weight	0.0019 kg
barcode

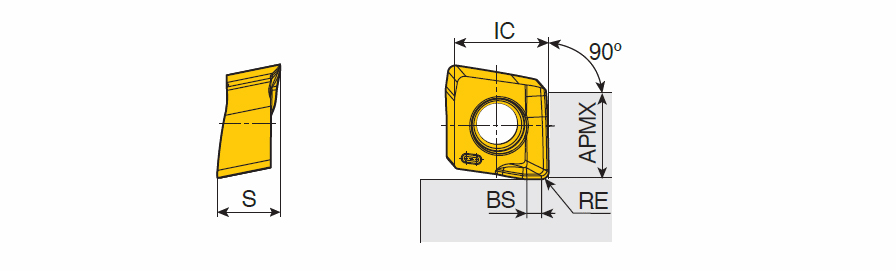

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Corner Radius (RE): 0.8 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 4.2 mm Minimum Feed per Tooth (fz(min)): 0.06 mm/tooth Inscribed Circle Diameter (IC): 5.17 mm Measurement Type: Metric Insert Thickness (S): 3.4 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
