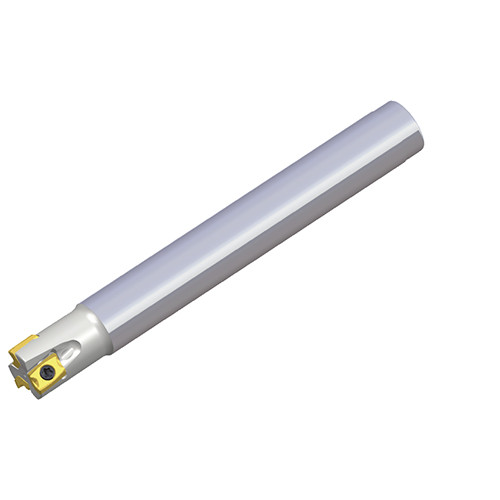

Taegutec 2S-TE90CV-208-08-05

Product Code: 6313251

$425.70$387.00 Ex. GST

Product Code: 6313251 SKU 6313251 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

End mills with unique high positive V shape inserts of two cutting edges for shouldering and high feed milling

Weight	0.0700 kg
Dimensions
barcode

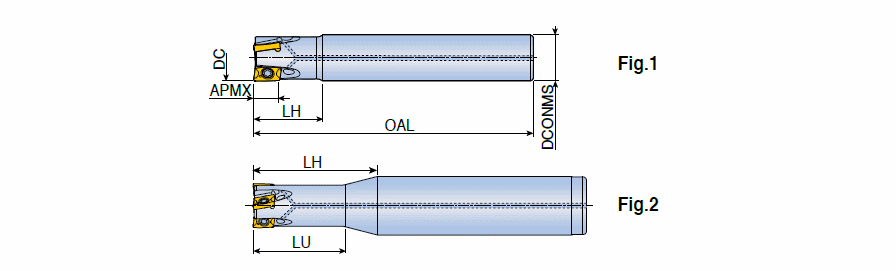

Additional Information	Cutting Diameter (DC/DCX): 8 mm Connection Diameter Machine Side (DCONMS): 8 mm Cutting Diameter (DC): 8 mm Master Insert Identification (MIID): CVKT 0502PNR-M Cutting Item Count (CICT): 2 Head Length (LH): 12 mm Depth of Cut Maximum (APMX): 5 mm Usable Length (LU): – Overall Length (OAL): 80 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Ramping Angle Maximum (RMPX): 2.1 Degrees Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
