Taegutec 2S-TE90CV-412-S08-05

Product Code: 6324975

$485.47$441.34 Ex. GST

Product Code: 6324975 SKU 6324975 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

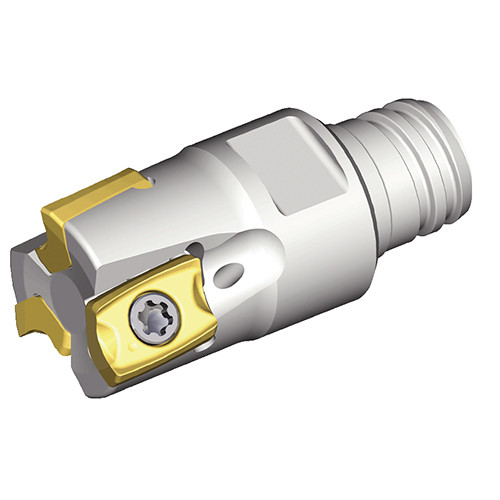

End mills with MAXIRUSH modular adaptation & unique high positive & rigid V shape inserts of two cutting edges for shouldering and high feed milling

Weight	0.0700 kg
Dimensions
barcode

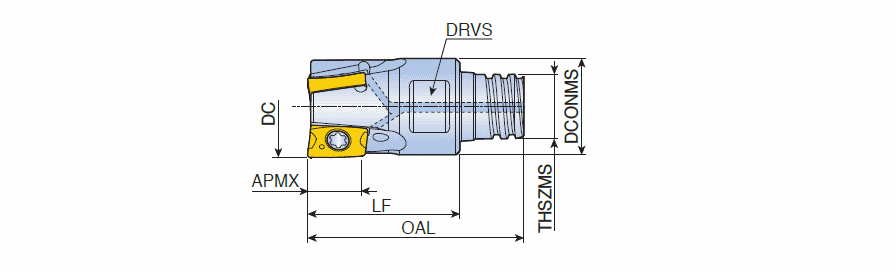

Additional Information	Cutting Diameter (DC/DCX): 12 mm Connection Diameter Machine Side (DCONMS): 11.5 mm Cutting Diameter (DC): 12 mm Master Insert Identification (MIID): CVKT 0502PNR-M Cutting Item Count (CICT): 4 Functional Length (LF): 16 mm Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Overall Length (OAL): 23.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Unit: M
