Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec 2S-TE90CV-514-14-05-L90
$500.13$454.66 Ex. GST

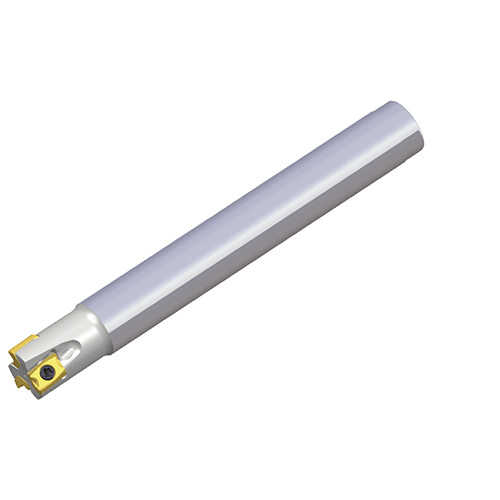

End mills with unique high positive V shape inserts of two cutting edges for shouldering and high feed milling

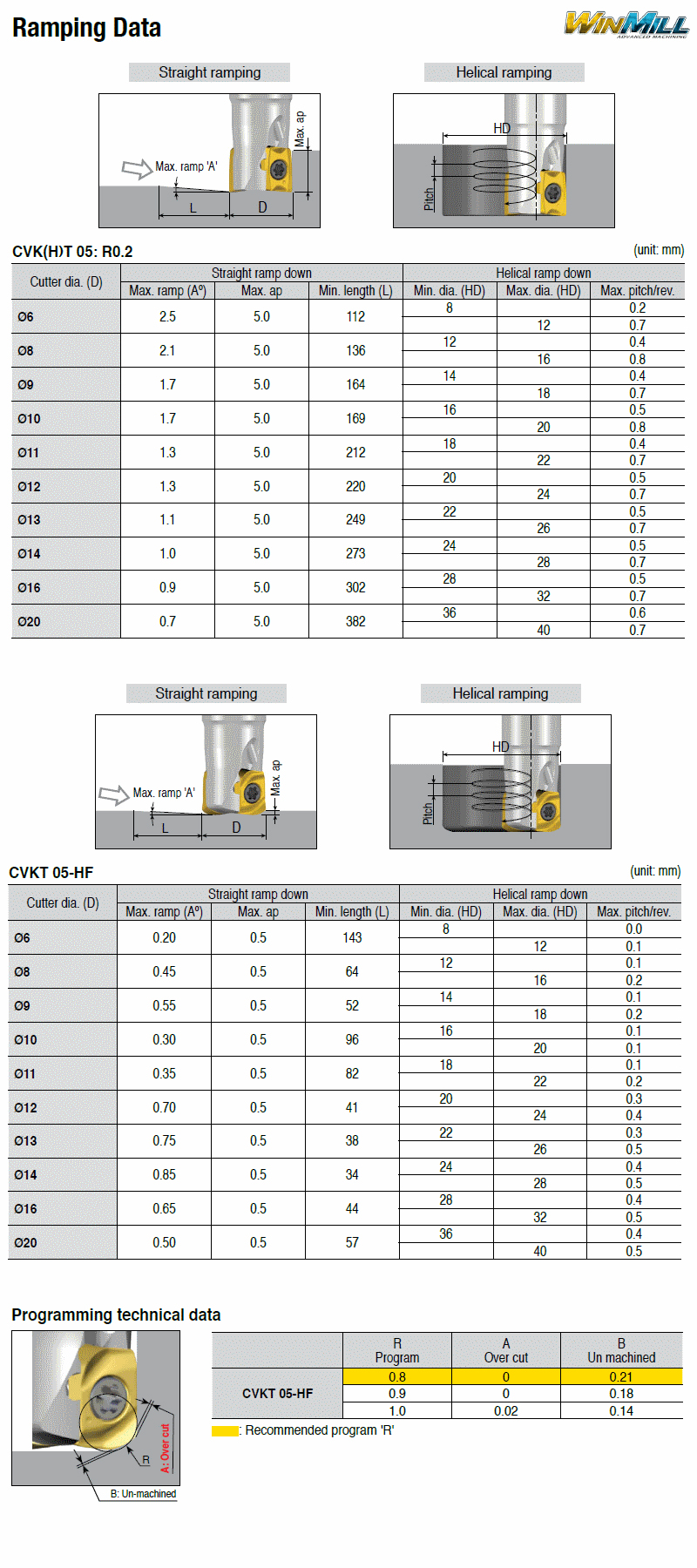

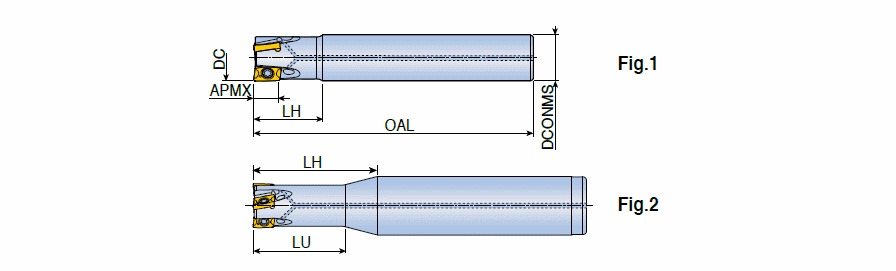

Cutting Diameter (DC/DCX): 14 mm Connection Diameter Machine Side (DCONMS): 14 mm Cutting Diameter (DC): 14 mm Master Insert Identification (MIID): CVKT 0502PNR-M Cutting Item Count (CICT): 5 Head Length (LH): 15 mm Depth of Cut Maximum (APMX): 5 mm Usable Length (LU): – Overall Length (OAL): 90 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Ramping Angle Maximum (RMPX): 1.05 Degrees Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
