Taegutec 2S-TE90CV-516-M08-05

Product Code: 6230312

$530.06$481.87 Ex. GST

Product Code: 6230312 SKU 6230312 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

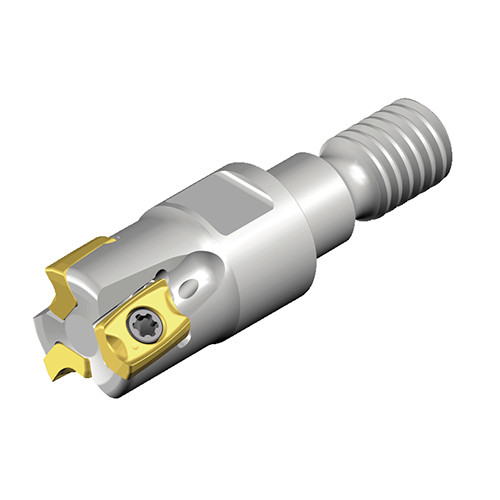

End mills with T-FLEXTEC modular adaptation & unique high positive & rigid V shape inserts of two cutting edges for shouldering and high feed milling

Weight	0.0850 kg
Dimensions
barcode

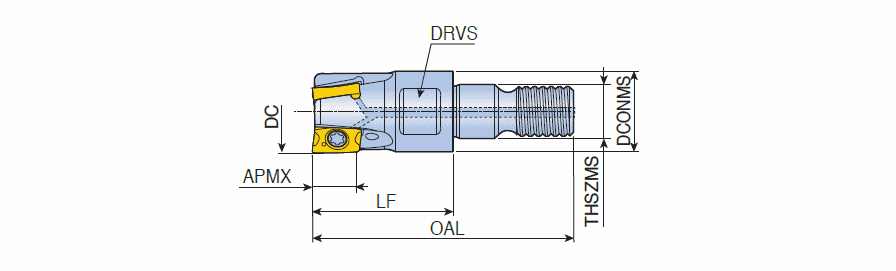

Additional Information	Cutting Diameter (DC/DCX): 16 mm Connection Diameter Machine Side (DCONMS): 13 mm Cutting Diameter (DC): 16 mm Master Insert Identification (MIID): CVKT 0502PNR-M Cutting Item Count (CICT): 5 Functional Length (LF): 23 mm Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Overall Length (OAL): 40.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Unit: M
