Taegutec 2S-TEF D20-25-W20-AP09

Product Code: 3110317

$898.95$817.23 Ex. GST

Product Code: 3110317 SKU 3110317 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

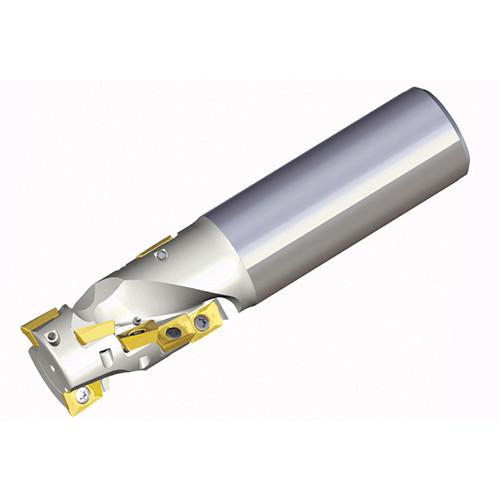

Taegutec 2S-TEF D20-25-W20-AP09

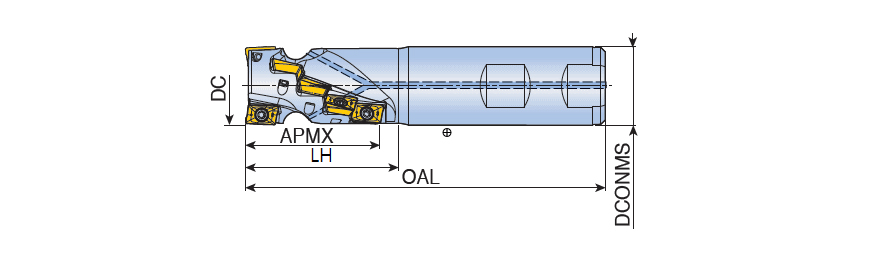

Taegutec 2S-TEF D20-25-W20-AP09 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute end mills with high positive APKT 09 inserts of two helical cutting edges

Additional information

Weight	0.2850 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): APKT 09T3 PER-EM Cutting Item Count (CICT): 3 Head Length (LH): 38 mm Depth of Cut Maximum (APMX): 26 mm Flute Count (NOF): 1 Overall Length (OAL): 110 mm Measurement Type: Metric Shank Type: Weldon Body Material: Steel Application:, Shouldering, Slotting, Trochoidal Milling, Unit: M

Brand

Taegutec
