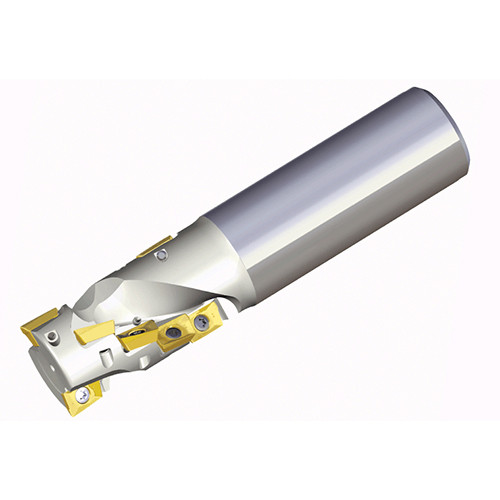

Taegutec 2S-TEF D32-42-W32-AP09

Product Code: 3110319

$1,441.19$1,310.17 Ex. GST

Product Code: 3110319 SKU 3110319 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute end mills with high positive APKT 09 inserts of two helical cutting edges

Additional information

Weight 0.7000 kg
Dimensions
barcode
Additional Information

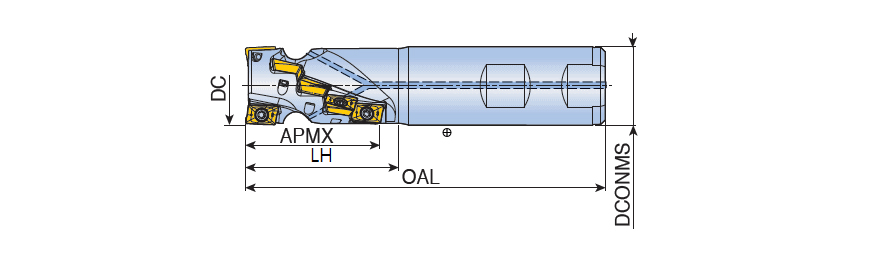

Cutting Diameter (DC/DCX): 32 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 32 mm
Master Insert Identification (MIID): APKT 09T3 PER-EM
Cutting Item Count (CICT): 10
Head Length (LH): 51 mm
Depth of Cut Maximum (APMX): 42 mm
Flute Count (NOF): 2
Overall Length (OAL): 120 mm
Measurement Type: Metric
Shank Type: Weldon
Body Material: Steel
Application:, Shouldering, Slotting, Trochoidal Milling, Unit: M

Brand

Taegutec
