Taegutec 2S-TFM90AP 10160-40R-19

Product Code: 6107020

$2,192.53$1,993.21 Ex. GST

Product Code: 6107020 SKU 6107020 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

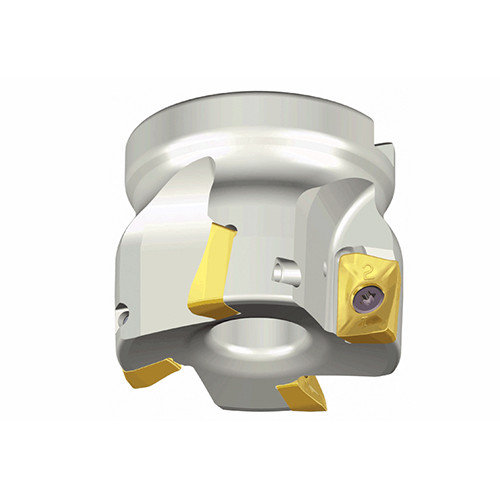

90° Face mills with strong APKT 19 inserts for roughing of heavy industry parts of wind mills and power generations

Weight	4.7350 kg
Dimensions
barcode

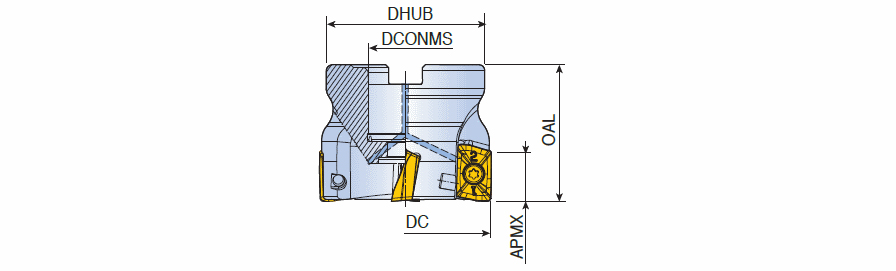

Additional Information	Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): APKT 190712R-MR Cutting Item Count (CICT): 10 Body Material: Steel Depth of Cut Maximum (APMX): 17.9 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
