Taegutec 2S-TFM90AP 640-16R-09

Product Code: 3112508

$776.01$705.46 Ex. GST

Product Code: 3112508 SKU 3112508 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

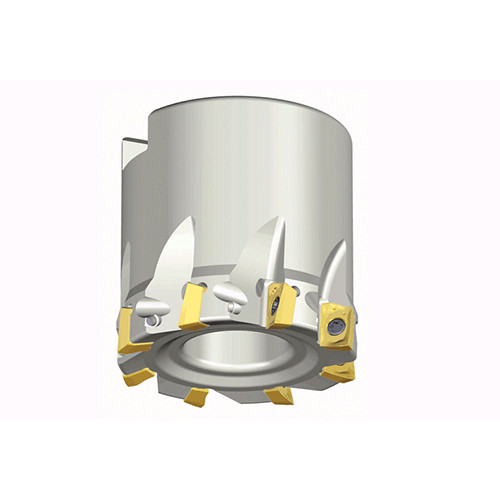

90° Face mills with high positive two helical cutting edges of APKT 09 inserts

Additional information

Weight 0.7900 kg
Dimensions
barcode
Additional Information

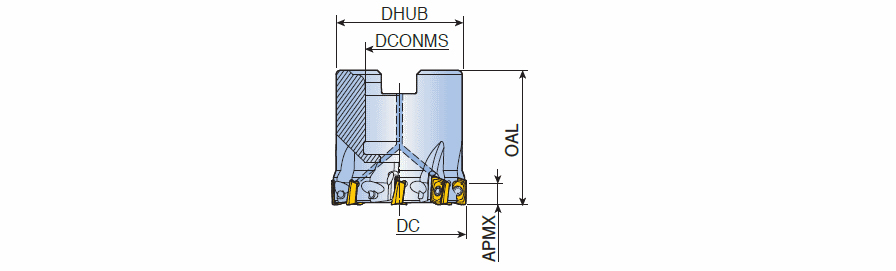

Cutting Diameter (DC): 40 mm
Master Insert Identification (MIID): APKT 09T3 PER-EM
Cutting Item Count (CICT): 6
Body Material: Steel
Depth of Cut Maximum (APMX): 8.8 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 16 mm
Measurement Type: Metric
Overall Length (OAL): 40 mm
Unit: M

Brand

Taegutec
