Taegutec 3ED-135-P+ TT5130

Product Code: 6247263

$218.12$198.29 Ex. GST

Product Code: 6247263 SKU 6247263 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

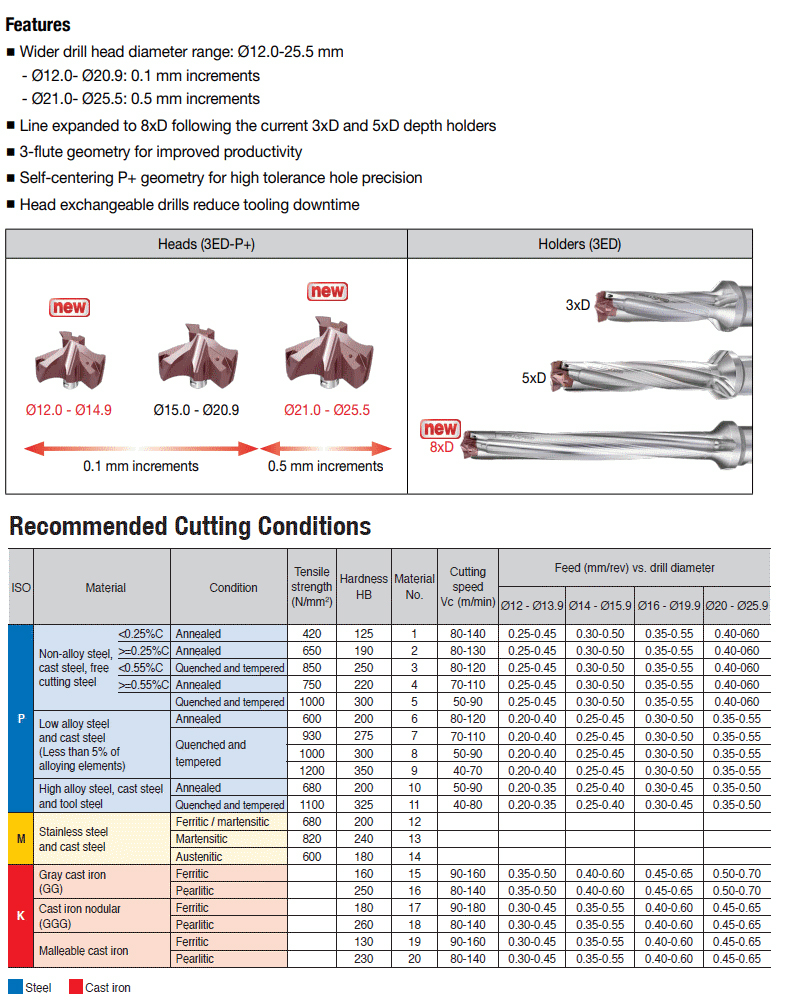

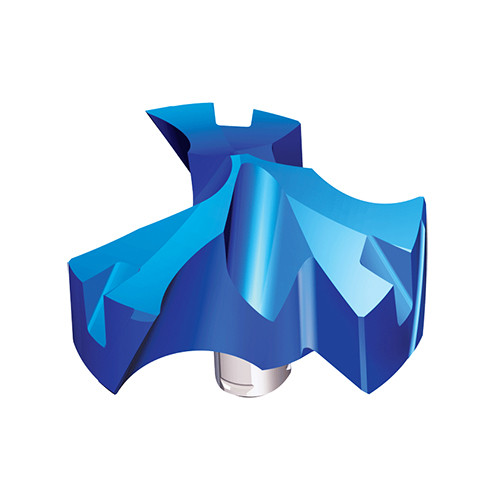

Exchangeable 3 flute drill heads for steels and cast irons with high productivity

Additional information

Weight 0.0125 kg
barcode
Additional Information

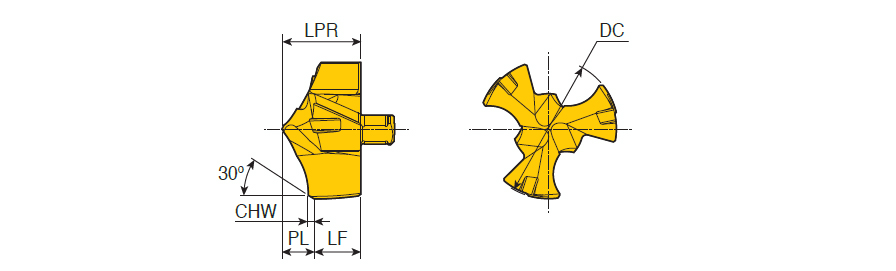

Cutting Diameter (DC): 13.5 mm
Cutting Edge Material: Carbide
Applicable Material:, Steel, Cast Iron, Measurement Type: Metric
Application:, Drilling, Hole Making Inserts, Point Length (PL): 2.93 mm
Grade: TT5130
Coating: Multi TiAlN
Protruding Length (LPR): 7.3 mm
Corner Chamfer Width (CHW): 0.4 mm
Insert Seat Size Code (SSC): 13
Body Material: Carbide
Functional Length (LF): 4.37 mm
Unit: M

Brand

Taegutec
