Taegutec 3ED-250-P+ TT5130

Product Code: 6320971

$344.95$313.59 Ex. GST

Product Code: 6320971 SKU 6320971 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

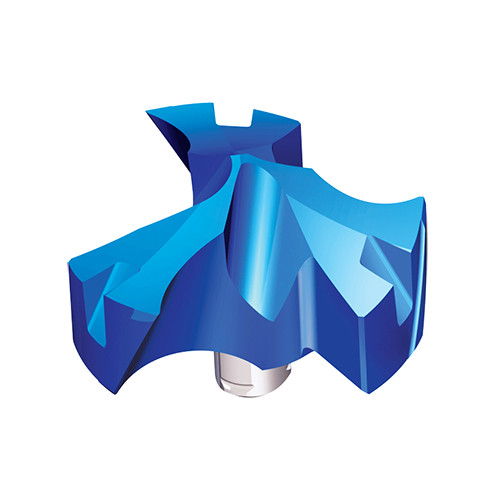

Exchangeable 3 flute drill heads for steels and cast irons with high productivity

Additional information

Weight 0.0355 kg
barcode

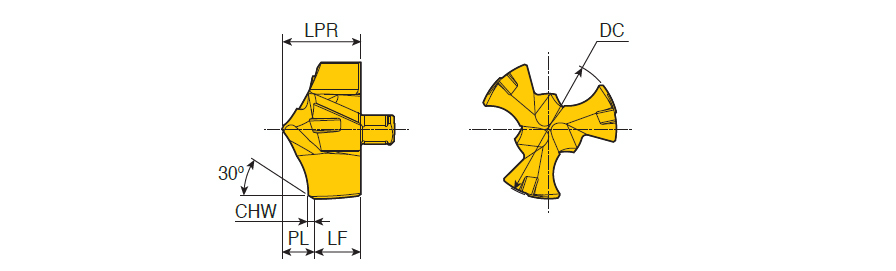

Additional Information

Cutting Diameter (DC): 25 mm
Cutting Edge Material: Carbide
Applicable Material:, Steel, Cast Iron, Measurement Type: Metric
Application:, Drilling, Hole Making Inserts, Point Length (PL): 5.29 mm
Grade: TT5130
Coating: Multi TiAlN
Protruding Length (LPR): 14 mm
Corner Chamfer Width (CHW): 0.4 mm
Insert Seat Size Code (SSC): 25
Body Material: Carbide
Functional Length (LF): 8.71 mm
Unit: M

Brand

Taegutec
