Taegutec 3F 32-39-W32-250

Product Code: 3108438

$1,075.05$977.32 Ex. GST

Product Code: 3108438 SKU 3108438 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

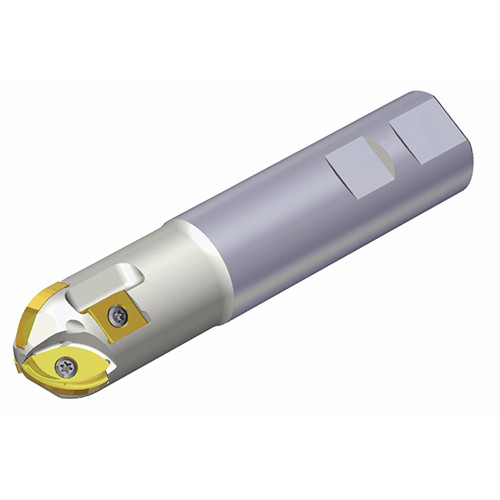

Three effective ball nose end mills with Weldon shank and unique doubles-sided inserts of 3FB for higher productivity in diameters of 32 & 50 mm

Weight	1.4900 kg
Dimensions
barcode

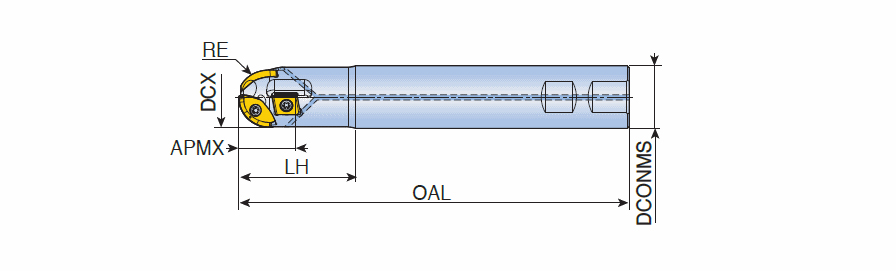

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): 3FB320C-M Cutting Item Count (CICT): 1 Head Length (LH): 60 mm Depth of Cut Maximum (APMX): 39 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Helical Interpolation, Profiling, Rampdown
