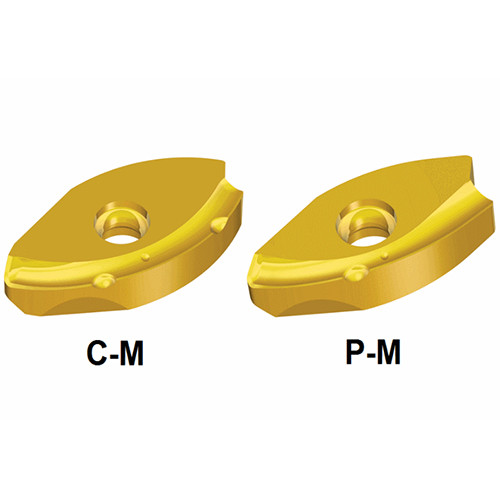

Taegutec 3FB320P-M TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080
Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Cutting Edge Length (L): 21 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 16 mm
Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth
Depth of Cut Maximum (APMX): 12.8 mm
Measurement Type: Metric
Insert Width (W1): 9.87 mm
Body Material: Carbide
Insert Thickness (S): 5.2 mm
Unit: M
Coating: TiAlN+TiN
