Taegutec 3HD 040-029-06 PI5 TT5130

Product Code: 6303813

$213.65$194.23 Ex. GST

Product Code: 6303813 SKU 6303813 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

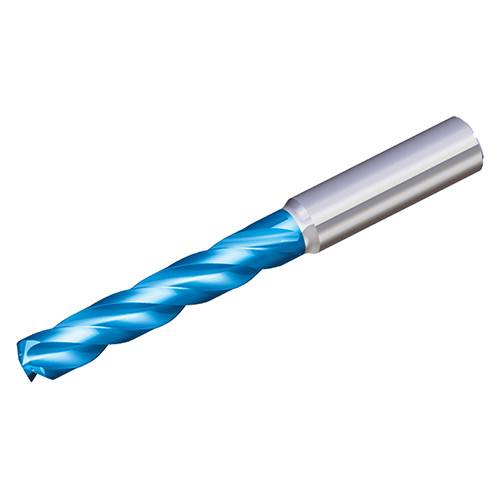

3 Flute Solid carbide drills with coolant holes for high productivity

Weight	0.0215 kg
Dimensions
barcode
Additional Information	Drill Bit Size / Cutting Diameter (DC): 4 mm Cutting Edge Material: Carbide Drill Bit Size / Cutting Diameter (DC) – Metric: 4 mm Grade: TT5130 Coating: Multi TiAlN Measurement Type: Metric Applicable Material:, Steel, Cast Iron, Usable Length (LU): 29 mm Application:, Drilling, Tools for Swiss Machines, Length Chip Flute (LCF): 37 mm Connection Diameter Machine Side (DCONMS): 6 mm Overall Length (OAL): 74 mm Point Length (PL): 0.82 mm Body Material: Carbide Shank Length (LS): 35 mm Unit: M
