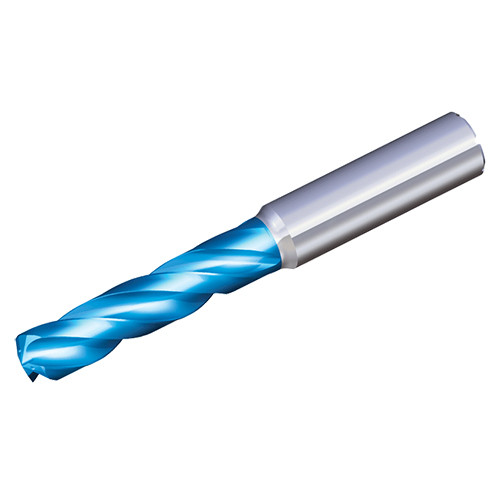

Taegutec 3HD 110-040-12 PI3 TT5130

Product Code: 6308955

$358.09$325.54 Ex. GST

Product Code: 6308955 SKU 6308955 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

3 Flute Solid carbide drills with internal coolant holes in drilling depth of 3xD for high productivity

Weight	0.1205 kg
Dimensions
barcode
Additional Information	Drill Bit Size / Cutting Diameter (DC): 11 mm Cutting Edge Material: Carbide Drill Bit Size / Cutting Diameter (DC) – Metric: 11 mm Grade: TT5130 Coating: Multi TiAlN Measurement Type: Metric Applicable Material:, Steel, Cast Iron, Usable Length (LU): 40 mm Application:, Drilling, Tools for Swiss Machines, Length Chip Flute (LCF): 55 mm Connection Diameter Machine Side (DCONMS): 12 mm Overall Length (OAL): 102 mm Point Length (PL): 2.07 mm Body Material: Carbide Shank Length (LS): 45 mm Unit: M
