Taegutec 3P-TE90-211-10-04

Product Code: 6321666

$462.63$420.57 Ex. GST

Product Code: 6321666 SKU 6321666 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

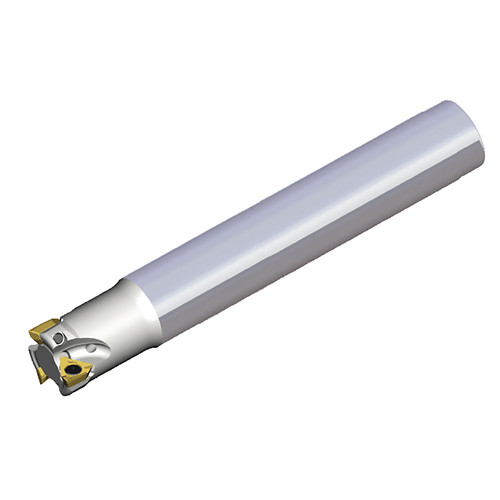

90° End mills with high positive three helical cutting edges inserts of 3PKT 04

Additional information

Weight 0.1150 kg
Dimensions
barcode
Additional Information

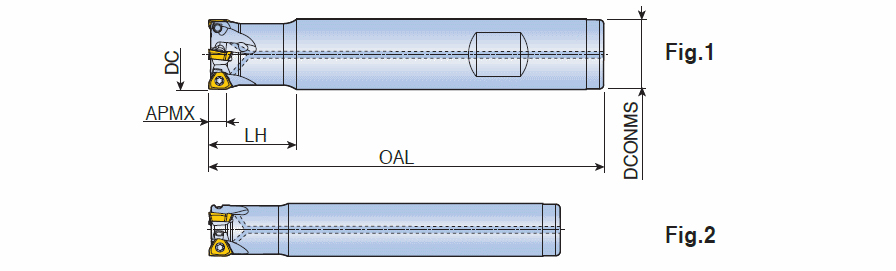

Cutting Diameter (DC/DCX): 11 mm
Connection Diameter Machine Side (DCONMS): 10 mm
Cutting Diameter (DC): 11 mm
Master Insert Identification (MIID): 3PKT 040202R-M
Cutting Item Count (CICT): 2
Head Length (LH): 11 mm
Depth of Cut Maximum (APMX): 3.5 mm
Measurement Type: Metric
Overall Length (OAL): 80 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting

Brand

Taegutec
